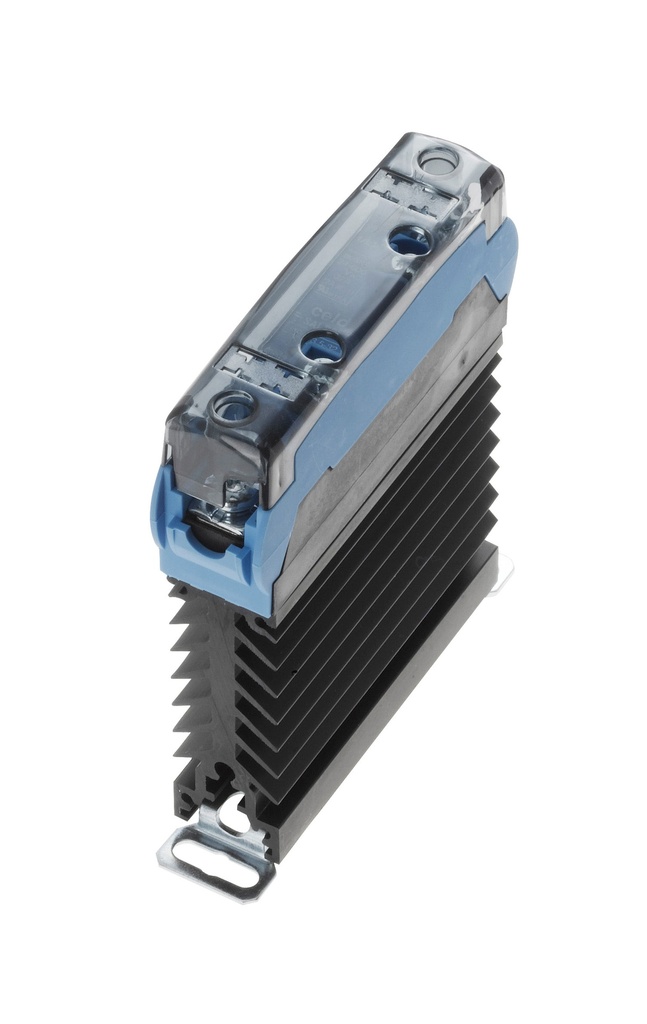

SSR 23A/24-600VAC/INPUT 6-32VDC/LED

SSR 23A/24-600VAC/INPUT 6-32VDC/LED

SAL962360 on kompaktne ja usaldusväärne ühefaasiline pooljuhtrelee, mis sobib kuni 25A vahelduvvoolu koormuse lülitamiseks. Null-läbipääsuga lülituse ja sisseehitatud jahutiga pakub see tõhusat ja ohutut juhtimist erinevates rakendustes, sealhulgas kütteseadmete jaoks.
Technical Specifications:
Thyristor Rating: 25A
Max. Switching Current: 18A AC-1 @ 40°C
Type of Mounting: DIN rail
Number of Poles: 1 (Single Phase)
Function: AC On/Off Zero-Cross
Switching Voltage Range: 24-600VAC
Control Voltage Range: 6-32VDC

Standards: CE, CSA, EAC, UKCA, UL (cURus), VDE

Features:
Type of Relay: AC
Series: SAL9-SAM9
Heatsink Included: YES
Terminals (Power): Screws
Housing Type: Low profile

Application: (AC-1 / LC A) Heating Elements
87.06 € 87.06 € (Tax excluded)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
Add to cart
Add to wishlist
Terms and Conditions
Prices exclude VAT.
Documents
CC_Mono TOR.pdf FT_SAL962360.pdf IS_SA.pdf

Manufacturer Part Number: SAL962360
Internal Reference: EE-100-187-871

Specifications

Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay standards CE, CSA, EAC, UKCA, UL cURus, VDE
Relay switching voltage 110/120 VAC, 230 VAC, 400 VAC, 480 VAC, 600 VAC
Min thyristor rating per phase (A) 20 29 (Min thyristor rating per phase (A))
Relay application Ac1 lca heating elements
Relay enclosure Low profile
Relay function Ac on off zero crossing
Relay heatsink Yes (Relay heatsink)
Relay max switching current per phase 40c a 10 19 (Relay max switching current per phase 40c a)
Relay number of poles Single phase
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Din rail
Weight 0.2369 kg
