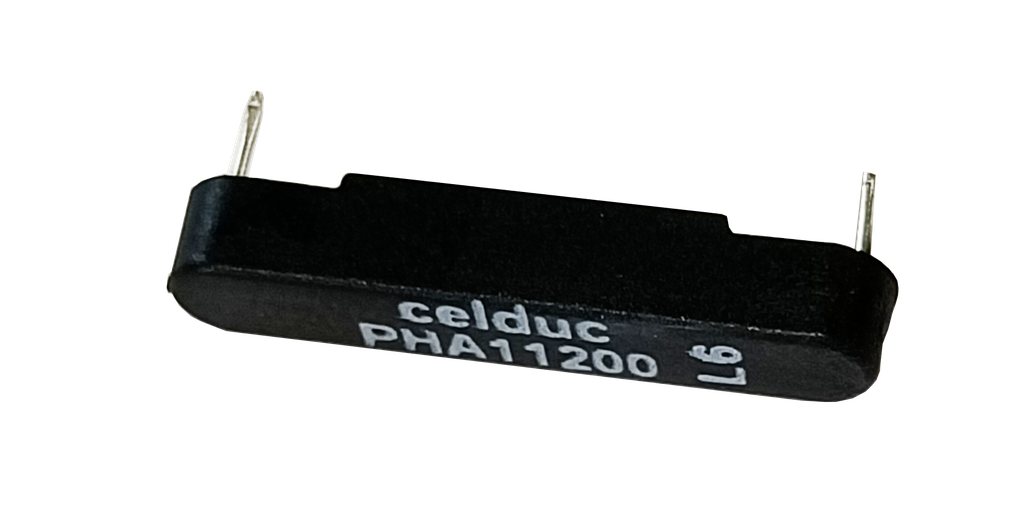

PROXIMITY SENSOR 1NO/S15-17AT/FOR PCB

PHA11200 on kompaktne ja usaldusväärne trükiplaadile monteeritav induktiivandur normaalselt avatud (NO) kontaktiga, mis sobib ideaalselt erinevatesse tööstuslikesse rakendustesse objektide tuvastamiseks ja juhtimiseks otse trükiplaadil (PCB). Eelnevalt konfigureeritud disain CI jaoks lihtsustab integreerimist, pakkudes ruumisäästvat lahendust erinevate vajaduste jaoks.

Technical Specifications:

Max Switching Power: 12VA/W (suitable for moderate-power applications)

Standards: CE, UKCA

Features:

Detection type: Clearance, Presence, Speed

Normally Open (NO) Contact for Reliable Control (up to 100VDC, 0.4A)

Compact Plastic Housing for Space-Saving PCB Integration

Pre-configured Design for CI (Included) for Simplified PCB Mounting

17mm Sensing Distance (with U6250000 target, refer to datasheet for specific targets)

Max Switching Voltage: 100VDC (suitable for low-voltage DC control circuits)

Max Switching Current: 0.4A (suitable for moderate-power applications)

Sensor Series: PH

Application: Clearance, Presence, Speed Detection (industrial automation, PCB-based control systems, etc.)
