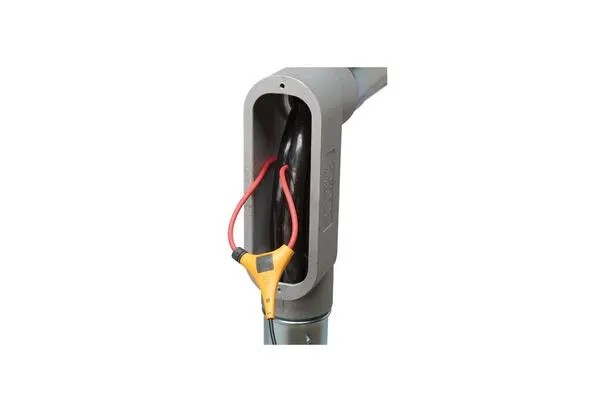

iFlex, flexible, current, clamp, 2500A,, loop, length, 18, inches

  • Laiendab mõõteulatust 2500 A AC-ni, pakkudes samal ajal suuremat ekraani paindlikkust, võimet mõõta ebamugava suurusega juhtmeid ja paremat juurdepääsu juhtmetele
  • CAT IV 600 V, CAT III 1000 V
  • 7,5 mm spiraali läbimõõt võimaldab mõõta kitsastes ruumides
  • Ergonoomiline disain võimaldab hõlpsat ühe käega kasutamist
  • 1,8 m (6 jalga) kaabel
  • Kolmeaastane garantii
Specifications: Fluke i2500-18 iFlex® Flexible Current Probes
Specifications
RangeResolutionAccuracy
AC Current12500 A0.1 A3% ± 5 digits2
Frequency1500 Hz0.1 Hz0.5% ± 5 digits
External magnetic field rejection
(with cable >10 cm from the coupling)		40 dB
Inrush1•
Safety ratingCAT III 1000 V, CAT IV 600 V
1. When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy.
2. For position accuracy at non-optimum positions, see Position sensitivity specifications table “A”
Position Sensitivity Specifications
Distance from Optimumi2500-18Additional iFlex® Error
A1.4 in (35.6 mm)±0.5%
B2.0 in (50.8 mm)±1.0%
C2.5 in (63.5 mm)±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature.
217.00 € 217.00 € (Tax excluded)

Add to cart
Terms and Conditions
Prices exclude VAT.

Manufacturer Part Number: FLUKE-I2500-18
Internal Reference: EE-100-176-125
