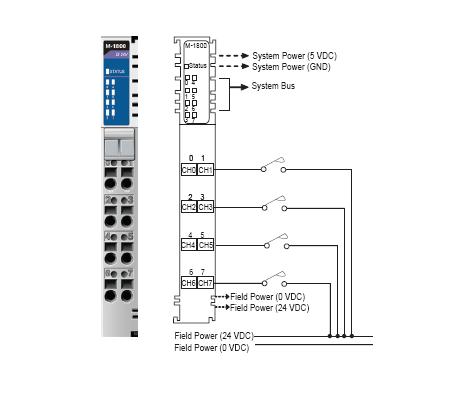

8 digital inputs, sink, 24 VDC

Digital Inputs	8 channels, sink type
On-state Voltage	24 VDC nominal, min. 11 VDC to max. 28.8 VDC
Min. Off-state Voltage	Max. 5 VDC
On-state Current	Max. 6 mA/point @ 28.8 VDC
Input Impedance	Typ. 5.1K ohms
Filtering Time	Typ. 1.5 ms
Common Type	External common (single common)
Power Consumption	35 mA @ 5 VDC

85.00 € (Tax excluded)

Terms and Conditions
Prices exclude VAT.

Manufacturer Part Number: M-1800
Internal Reference: EE-100-183-682
