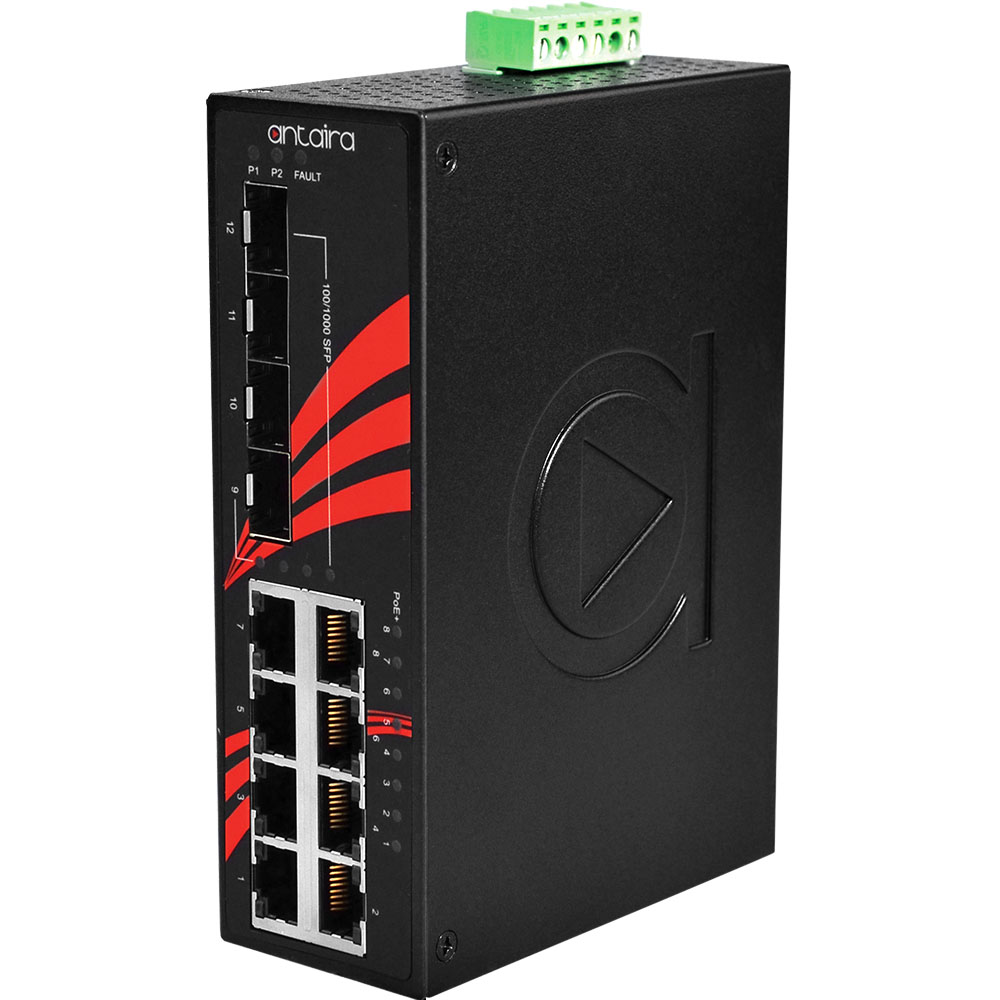

12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots

12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/810/100/1000Tx (30W/Port) + 4100/1000 SFP Slots

Certifications	FCC, RoHS, CE, UL 61010-1, UL 61010-2-201
Connection	1 Removable 6-Contact Terminal Block
Dimensions	46 x 99 x 142 mm
EMS	EN61000-4-2,3,4,5,6,8 EN61000-6-2,4
Ethernet Port	8*RJ45 Ports w/ 10/100/1000tx (PSE 30Watts per Port)
Fiber Port	4* 100/1000 SFP Slots
Flow Control	IEEE 802.3x Back Pressure Flow Control
Housing / Mounting	Metal, IP30 Protection with DIN-Rail & Wall Mounting Kits Included
Input Voltage	48~55VDC, Redundant Input
Jumbo Frame	9.6Kbytes
MAC Table Size	8k
Memory Buffer	7,926pps (Default)
Operating Temperature	STD: -10°C to 70°C EOT: -40°C to 75°C
Overload Current Protection	Present
Poe Pin Assignment	V+, V+, V-, V- for Pins 1, 2, 3, 6
Power Consumption	Unit 15 Watts 215 Watts @ 48VDC / 255 Watts @ 55VDC
Processing Type	Store and Forward
Shock/Vibration/Free Fall	IEC60068-2-27/6/32
Standards	IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3at PoE+
Storage Temperature	-40C to 85C
Switching Architecture	Back-Plane (Switching Fabric): 24Gbps
Technology Protocol	CSMA/CD
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Ports
Warranty	5 Years

840.00 € (Tax excluded)

Add to cart

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

Antaira_LNP-1204G-SFP series_Datasheet-v1.1.pdf

Manufacturer Part Number: LNP-1204G-SFP
Internal Reference: EE-100-169-985

Specifications

Weight

0.82 kg
