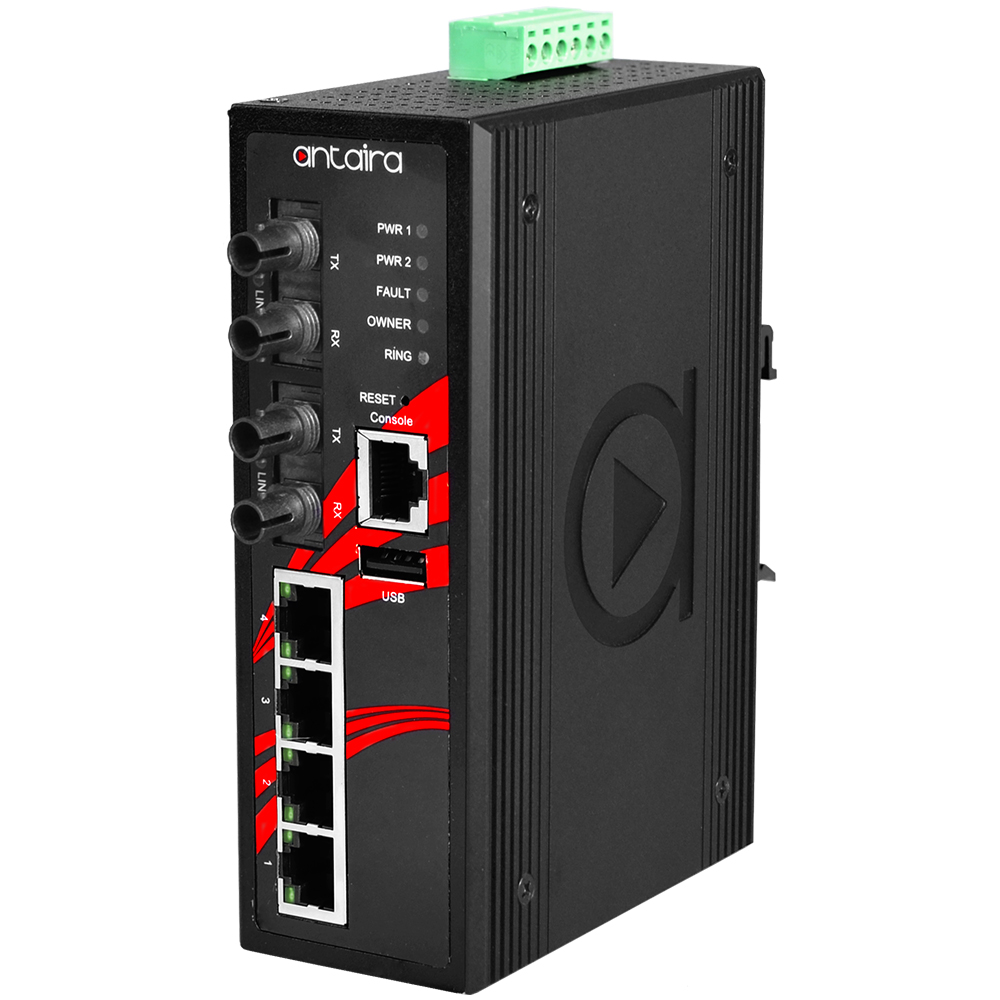

6-Port Industrial PoE+ Managed Ethernet Switches w/4*10/100Tx (30W/Port), and 2*100Fx Multi-Mode 2Km, ST Connector, 12~36VDC;

6-Port Industrial PoE+ Managed Ethernet Switches w/410/100Tx (30W/Port), and 2100Fx Multi-Mode 2Km, ST Connector, 12~36VDC;

Certifications	FCC, CE, UL508 (Pending)
Configuration backup	1*USB 2.0
Dimensions	46 x 142 x 99 mm
Ethernet Port	4*10/100BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Fiber Port	2*100Fx (ST type connector); Multi-mode 2Km
Free Fall / Shock / Vibration	IEC60068-2-32 / 2-27 / 2-6
Housing	Metal IP30 rated
IGMP	Up to 256 Groups
Input Voltage	12~36VDC Redundant Input
Mounting	DIN-Rail; Wall-mount (optional)
Operating Temperature	STD: -10° to 70° C
Overload Current Protection	Present
Poe Pin Assignment	V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
Power Consumption	10W (no PD included); 145W (Fully loaded)
Protocols	CSMA/CD,IGMPv1/v2,SNMPv1/v2,TFTP,SNTP,SMTP,RARP, Syslog
Reverse Polarity Power Protection	Present
Standards	IEEE 802.3, u, x, at/af IEEE 802.1d, w, s, q, x, ad, p ITU-TG.8032 / Y.1344 ERPS
VLAN	0 ~ 4094
Warranty	5 Years
Weight	Unit: 1.5 lbs Shipping: 2.3 lbs

780.00 € (Tax excluded)

Add to cart

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

Antaira_LMP-0602-24 series_Datasheet-v2.0.pdf

Manufacturer Part Number: LMP-0602-ST-M-24
Internal Reference: EE-100-169-857

Specifications

Weight

0.68 kg
