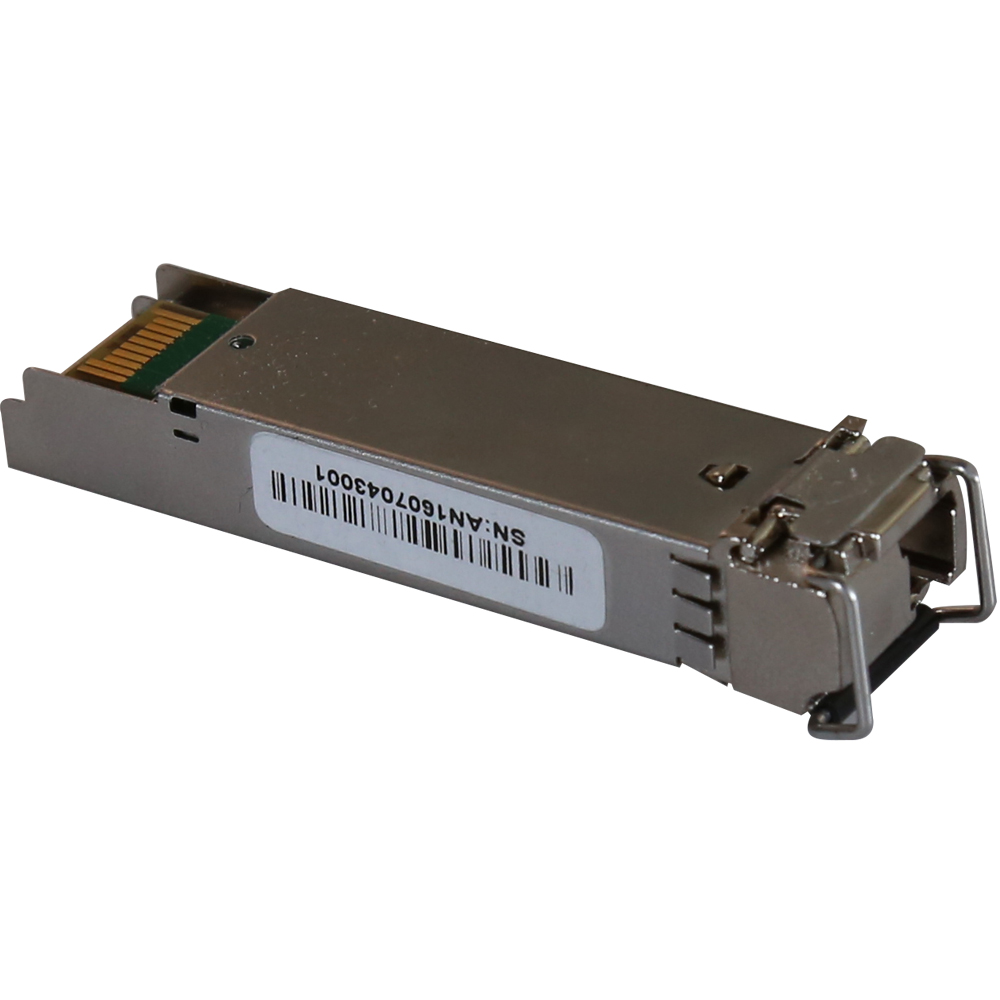

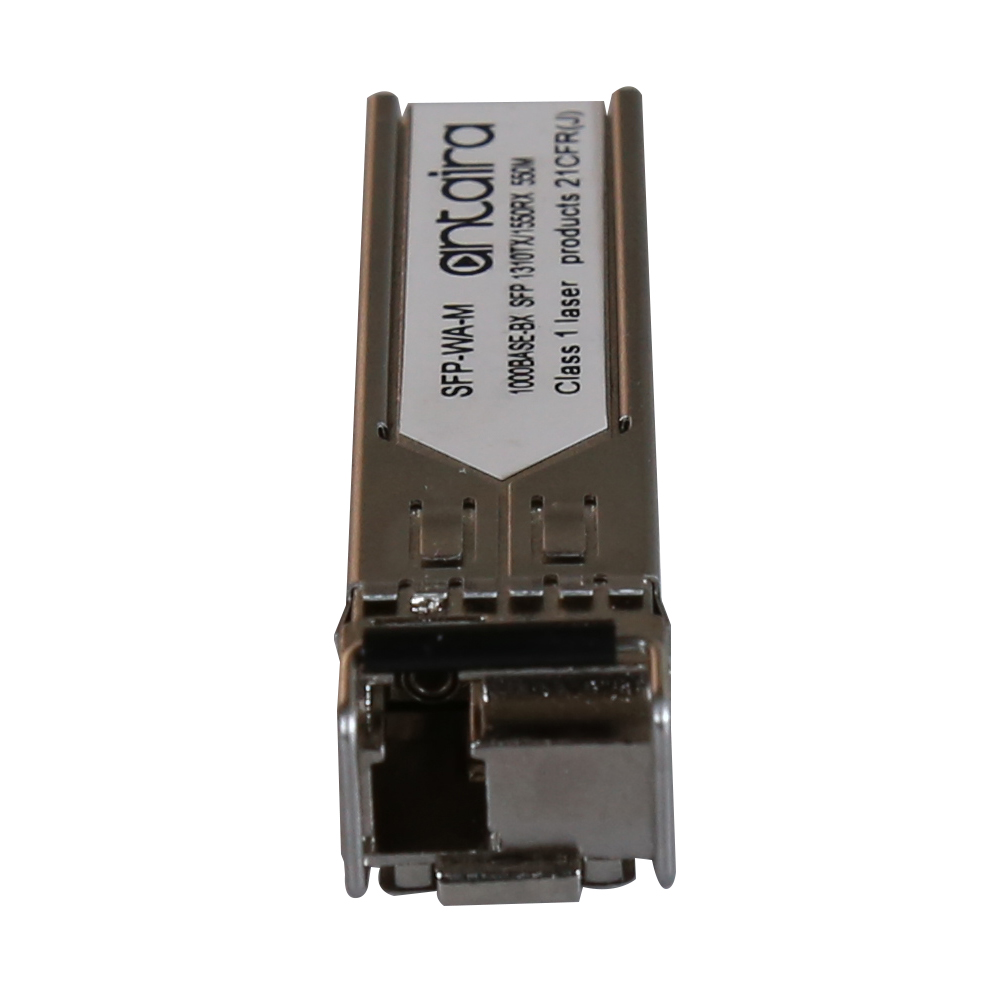

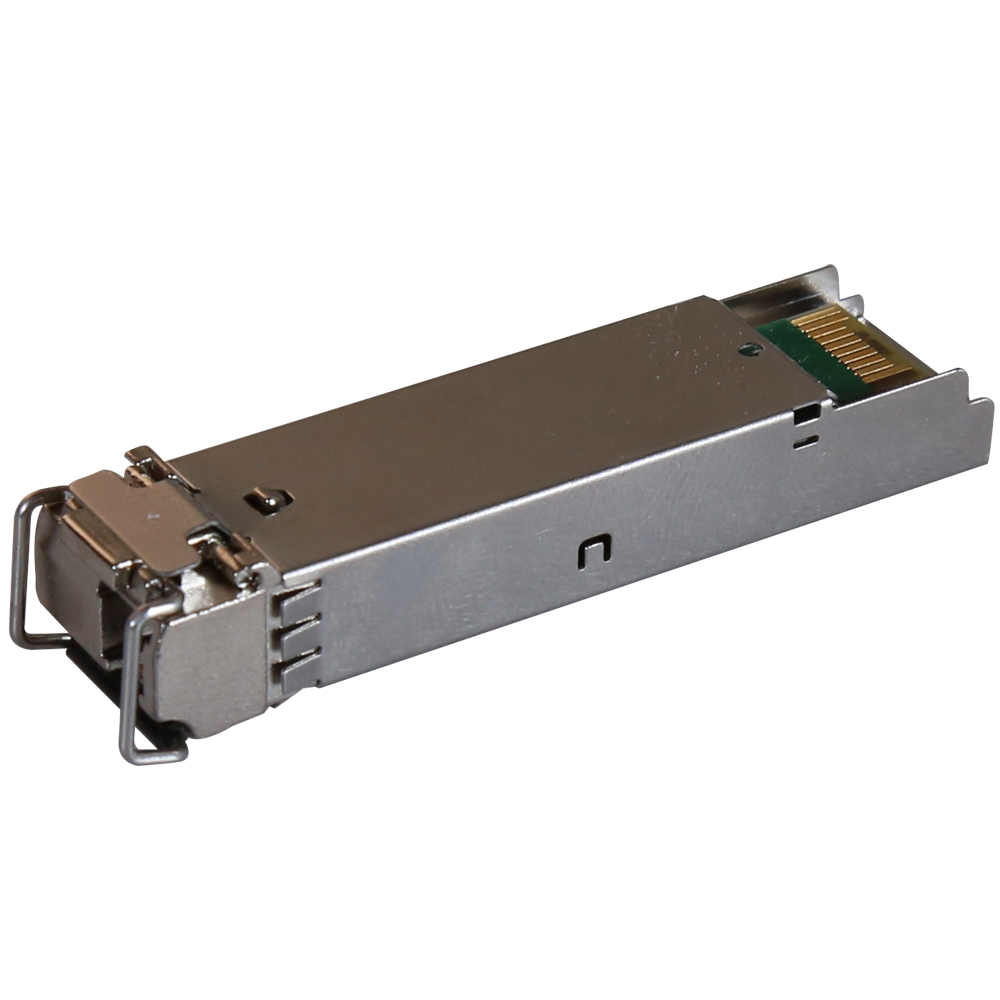

The SFP-WA-M is the high performance and cost-effective module for serial optical data communication applications specified for multimode of multi-rate from 125M to 1.25 Gb/s. It operates with +3.3V power supply. The module is intended for multimode fiber, operates at a nominal wavelength of Tx: 1310nm / Rx: 1550nm and complies with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a transmitter optical subassembly, a receiver optical subassembly and an electrical subassembly. All of them are housed in a metal package and the combination produces a reliable component.
The module is a multimode fiber connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE-802.3z compliant link for 1.25Gb/s intermediate reach applications. The characteristics are performed in accordance with Telcordia Specification GR-468-CORE.
FEATURES
1310nm FP LD
Multi Data Rate: from 125M to 1.25Gbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
Single LC Connector
Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
Compliance with ANSI specifications for Fibre Channel applications at 1.06 Gbps
Eye Safety
Designed to meet Laser Class 1 comply with EN60825-1
|
Data Rate |
Multi Data Rate: from 125M to 1.25Gbps, NRZ |
|
Dimensions |
13.70 x 55.50 x 8.95 mm (0.54 x 2.19 x 0.35 inches) |
|
Distance |
550 m |
|
Interface |
LC (Multi-Mode WDM) |
|
LD Type Wavelength |
1310 nm FP / 1550nm |
|
Operating Voltage And SD Output |
3.3V TTL AC/AC |
|
Output Power |
-10 ~ -4 dBm |
|
Sensitivity |
-17 dBm |
|
Warranty |
5-year Warranty |
