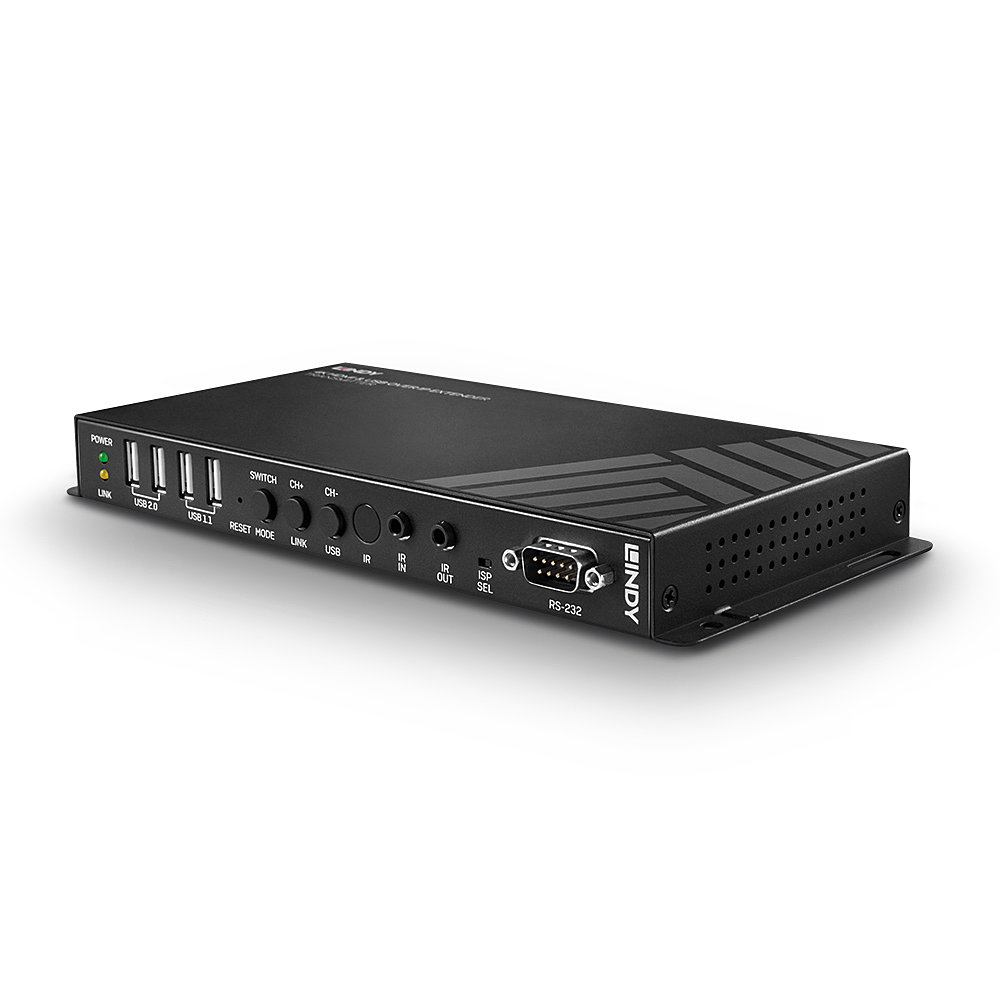

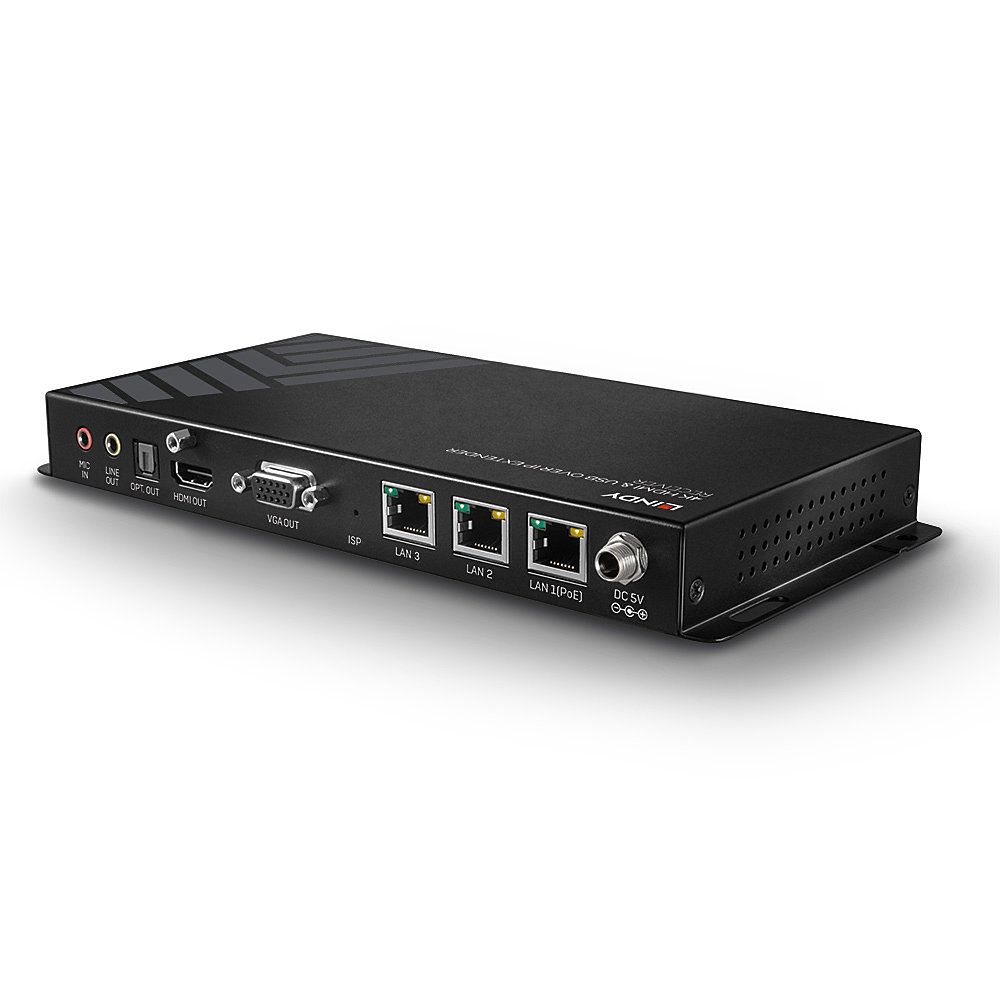

4K HDMI & USB over IP Extender, Receiver

Laiendab HDMI 4K (3840x2160p60Hz 4: 2: 0) või VGA (max 1920x1200) videosignaale Gigabit IP-võrgu kaudu
Toetab punkt-punkti paigaldamist kuni 100m ja punktpunkti paigaldamist Gigabit Switchi abil (ka video seina loomiseks)
Laiendab USB 2.0, USB HID (KVM funktsioonide jaoks), kahesuunaline analoogheli, kahesuunaline IR ja RS232 signaal
HDMI 2.0 ja HDCP 2.2 / 1.4 ühilduvad

Specifications

AV Interface: HDMI & VGA
Console Interface: USB
Interfaces Standard: HDMI 2.0, USB (HID) and USB 2.0
Supported Bandwidth: 10.2Gbps
Maximum Distance: 100m (393.7ft) (Point to Point)
Maximum Resolution: 3840x2160 60Hz 4:2:0 8bit (VGA Max 1920x1200 60Hz)
HDCP Support: HDCP 1.4 and 2.2
Supported Audio: Audio supported over HDMI signal and 2 analog bidirectional (1 x Audio and 1 x Microphone)
Separate Audio Ports: 2 x 3.5mm (Female), 1 x SPDIF Optical
Transmission Protocol: IP
Transmission Medium: Cat.6
Laser Class (only for Fibre): -
Wavelength (only for Fibre): -
Special Features: Video Wall Function (up to 16x16 screens), VGA Input & Output support (max. resolution 1920x1440), Bidirectional IR and Serial RS232 Extension

Connectors

Transmitter KVM Interfaces: -
Transmitter Extension Port: -

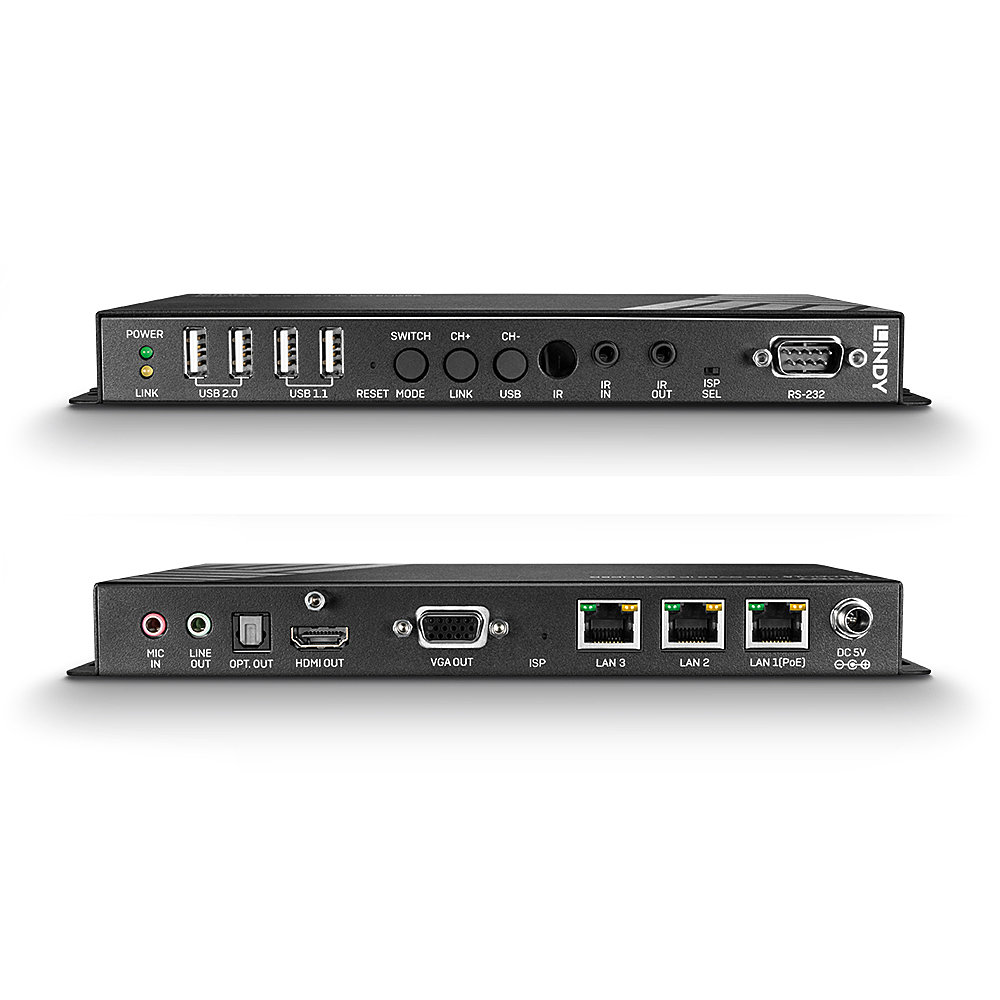

Receiver Consolle Interface: HDMI (Female), 2 x VGA (Female), 2 x USB 2.0 Type A (Female), 2 x USB HID Type A (Female), 2 x 3.5mm Audio (Female)
Receiver Extension Port: RJ45 Gigabit Ethernet (PoE support)
Bidirectonal Ports: 1 x DB9 (Male) for RS232
Other Interfaces: 2 x 3.5mm (Female) for bidirectional IR, 1 x SPDIF Optical for Digital Audio, 2 x RJ45 Ethernet Ports
Power: 5.5/2.1 mm DC socket

Physical Properties

Package Contents

581.90 € (Tax excluded)
