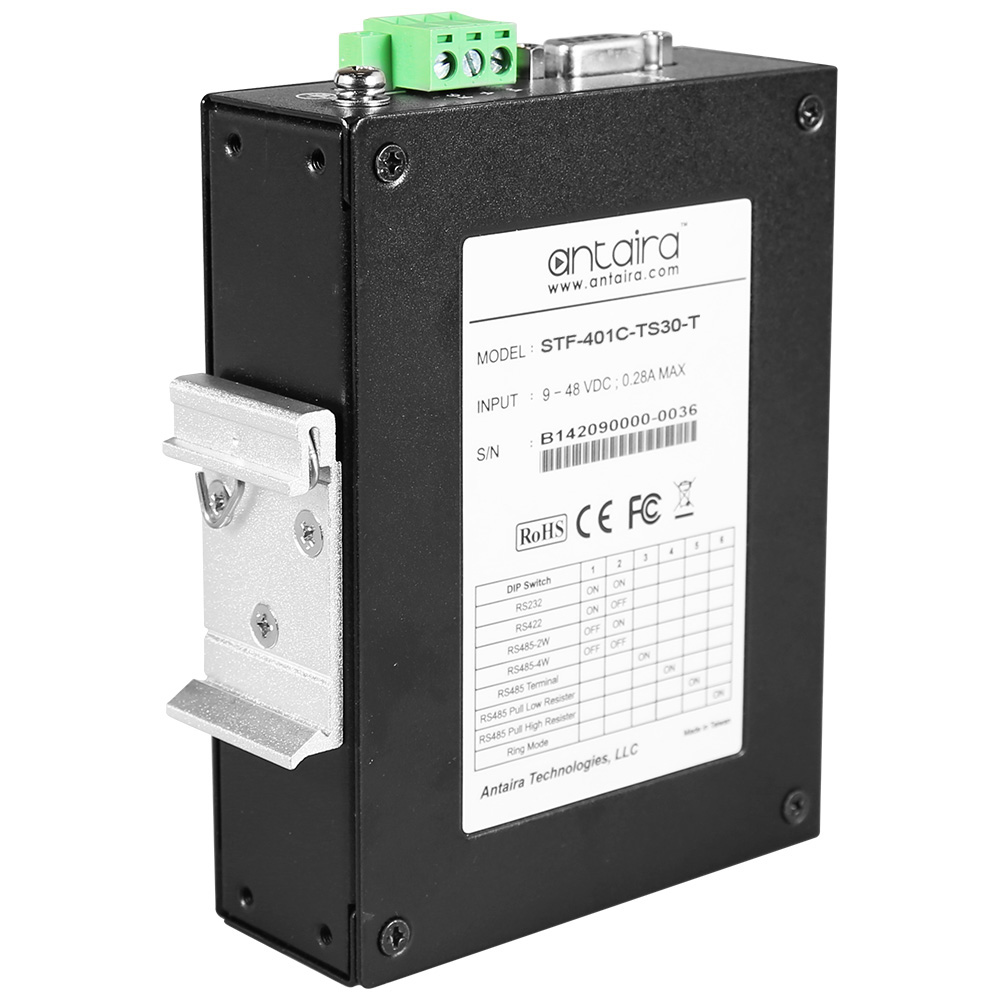

Industrial Compact RS-232/422/485 To Fiber Converter, Single-Mode 30KM, ST Connector, -40°C ~ 70°C

Industrial Compact RS-232/422/485 To Fiber Converter, Single-Mode 30KM, ST Connector, -40°C ~ 70°C

Baud Rate	300bps ~ 921kbps
Cable	Single-Mode: 9/125um
Casing Enclosure	Metal, IP30 Protection
Certifications	FCC, CE
Dimensions	34.4 x 91.2 x 120mm (1.35 x 3.59 x 4.72 in)
EMI	FCC Part15, CISPR (EN55022) Class A
EMS	EN61000-4-2 (ESD) Level 4, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (EFT) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A
ESD	15KV
Fiber Port	1 Fiber Port
Fiber Type	ST
Green	RoHS Compliant
Humidity	5 to 95%, 55°C (Non-Condensing)
Installation	DIN-Rail Mounting, Wall Mounting Kits (Optional)
Isolation	N/A
MTBF	216,388 Hours
Operating Temperature	-40°C ~ 70°C (-40°F ~ 158°F)
Power Consumption	2.52W - @0.28A max, 9 VDC
Power Input	9 ~ 48VDC
Power Input Connector	Removable 3-pin Screw Terminal Block
Pull High/Low	Dip Switch adjustment
Reverse Polarity Power Protection	Reverse Polarity Protection
Rx Sensitivity	Single-Mode: - 32 dBm
Serial Connector	RS-232: - TxD, RxD, GND ( DCD, DTR, DSR internal short ; CTS, RTS internal short ) RS-422: -4w - TxD+, TxD-, RxD+, RxD-, GND RS-485: -2w - Data+, Data-,GND
Stability Testing	Shock: MIL-STD-810F Method 516.5 Free Fall: MIL-STD-810F Method 516.5 Vibration: MIL-STD-810F Method 514.5 C-1 & C-2
Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Transmission Distance	Single-Mode: 30km
Tx Power	Single-Mode: -8 ~ -15 dBm
Warranty	5-Year Warranty
Wave length	1310nm
Weight	700g

409.00 € (Tax excluded)

Add to cart

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

Antaira_STF-401C series_Datasheet-v1.1.pdf

Manufacturer Part Number: STF-401C-TS30-T
Internal Reference: EE-100-170-074

Specifications

Weight

0.3 kg
