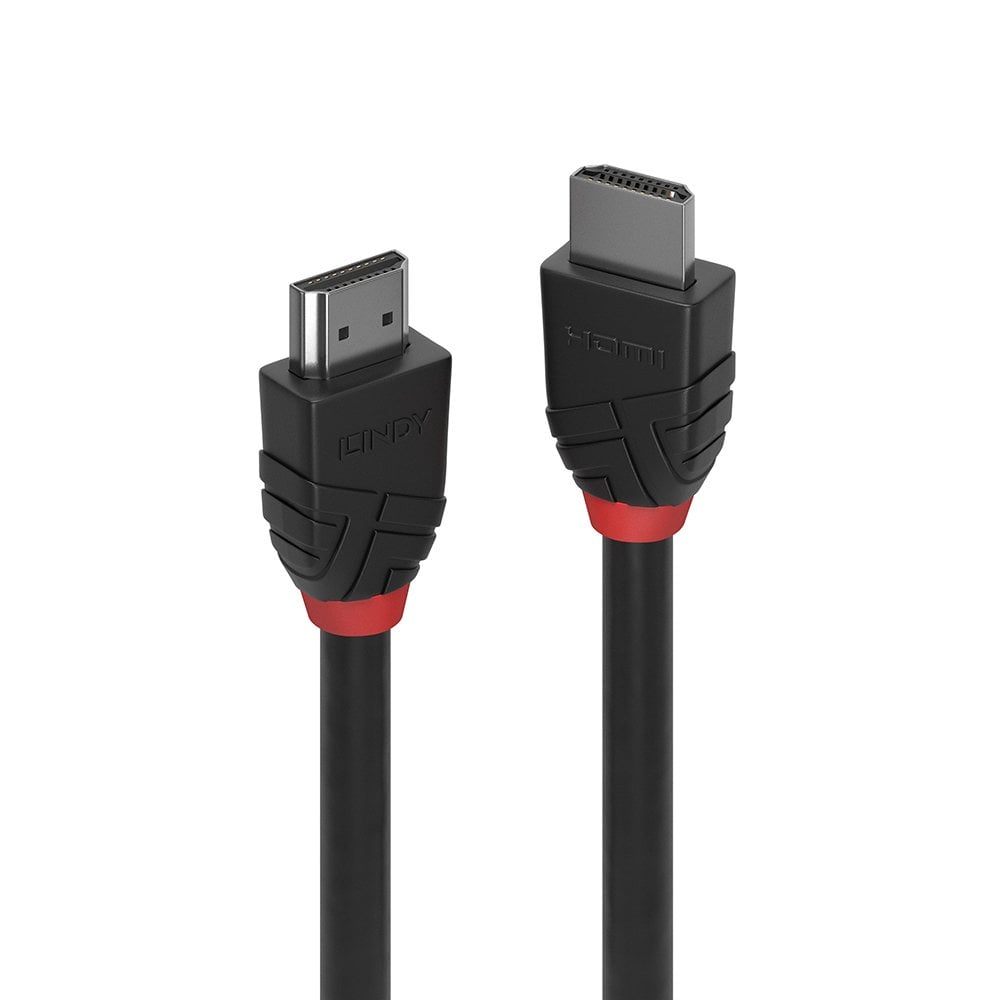

3m High Speed HDMI Cable, Black Line

Connectors:
  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Male
  • Housing Material: PVC
  • Connector Plating: Nickel
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Gold Flash
  • Dimensions (approx.) WxDxH: 19.2x34.1x10.6mm (0.76x1.34x0.42in)
Cable Construction:
  • Length: 3m (9.84ft)
  • Standard: High Speed HDMI with Ethernet
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6mm (0.24in)
  • Jacket Material: PVC
  • Conductor Material: Copper Coated Steel
  • Conductor Gauge: 30AWG
  • Shielding: Aluminium Foil
Specifications:
  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • ATC Approved: Yes
Miscellaneous:
  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL, ATC
5.95 € 5.95 € (Tax excluded)

  • AV connector
  • Frame rate
  • Length
  • Picture resolution
  • Weight
Add to cart
Add to wishlist
Terms and Conditions
Prices exclude VAT.

Manufacturer Part Number: 36473
Internal Reference: EE-100-179-543

Specifications

AV connector HDMI (AV connector)
Frame rate 60
Length 3 m
Picture resolution 3840x2160
Weight 0.165 kg
