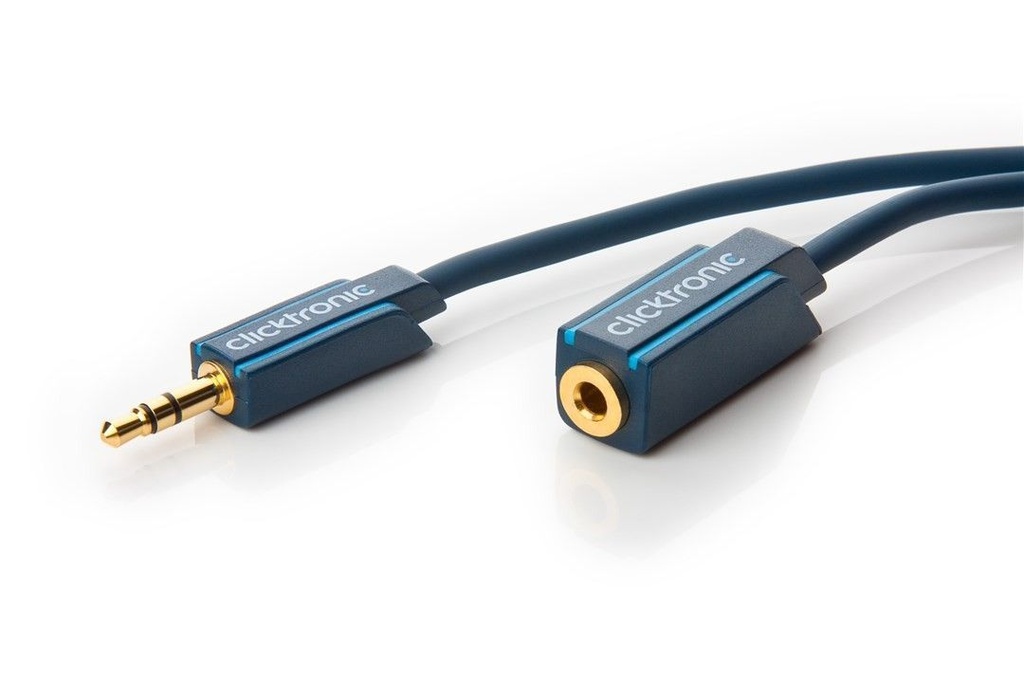

Clicktronic® 3.5mm stereo plug - 3.5mm stereo jack, 3.0m, gold-plated OFC, 2 x shielding

Clicktronic® 3.5mm stereo plug - 3.5mm stereo jack, 3.0m, gold-plated OFC, 2 x shielding

Connections

Connection, type 3.5 mm male (3-pin, stereo)
Connection, width 9.8 mm
Connection, housing material PVC
Connection 2, type 3.5 mm female (3-pin, stereo)
Latch protection no
Connection, shielding yes
Connection, contact material gold (24 kt)
Connection, height 8 mm
Connection, length 30.3 mm
Connection 2, width 12 mm
Connection 2, height 12.5 mm
Connection 2, length 37.5 mm

Cable

Cable type round cable
AWG 23
Cable sheath diameter (approx.) 3.9 mm
Inner conductor material OFC (99,9% oxygen-free copper)
inner conductor, core diameter 0.12
Cable length 3 m
Number of shieldings 2 x
Type 2, shielding braid (copper) 42x
Ferrite core no
Inner Conductor number 25 pieces

Signal transmission

max. bandwidth 10 MHz
Impedance 50 Ω
Capacity 155 pF

General

Consumption Unit 1 pc. in cardboard box
Operating temperature from -10 °C
Operating temperature up to 80 °C

12.46 € (Tax excluded)

Add to cart

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

70489_Produkt-Datenblatt-Product-Data-Sheet57fcabcd8819d[1].pdf

Manufacturer Part Number: 70488
Internal Reference: EE-100-196-289

Specifications

Weight

0.1 kg
