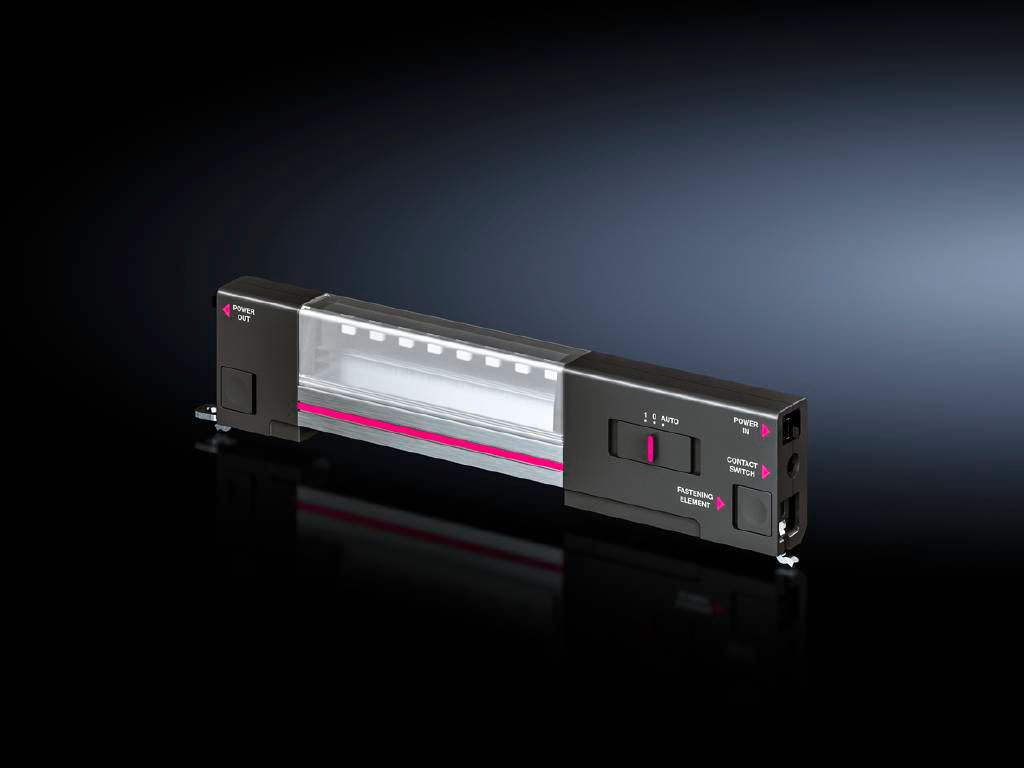

SZ System Light LED, 400 Lumen, L: 262 mm, 100-240 V

Design:	Without socket
Benefits:	Optimum illumination of the entire enclosure Optionally with clip, screw and magnetic attachment A configuration to suit every application
Equipment:	Without socket
Material:	Light body: Extruded aluminium Light cover: Polycarbonate (halogen-free) Light ends: PC-ABS (halogen-free)
Colour:	Enclosure: RAL 7016
Protection category IP to IEC 60 529:	IP 20
Supply includes:	Assembly screws
Dimensions:	Width: 262 mm Height: 55 mm Depth: 23 mm
Rated operating voltage:	100 V - 240 V, 1~, 50 Hz/60 Hz
Installation options:	The internal mounting rail AX and the mounting bracket are required when installing in compact enclosures
Operating temperature:	Operation (environment): -20 °C...+55 °C
Power consumption:	5 W
Luminous flux:	400 lm
Light colour:	4000 K (neutral white)
Protection class:	II (all-insulated)
Connection options:	Infeed, 2-pole Through-wiring, 2-pole Door-operated switch
Light – installation type:	Screw-fastening Clip attachment Magnetic attachment (accessory)

95.90 € (Tax excluded)

Terms and Conditions
Prices exclude VAT.

Documents

Rittal_2500100_NA_3_7008.pdf

Manufacturer Part Number: 2500100
Internal Reference: EE-100-187-478

Weight

0.1 kg
