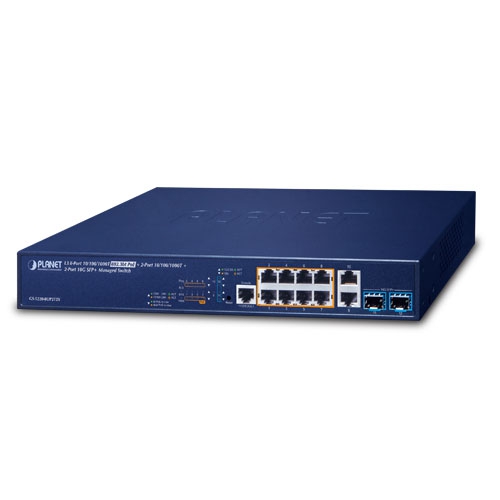

PLANET GS-5220-8UP2T2X kihi 3 hallatav gigabit-kommutaator toetab nii IPv4- kui ka IPv6-protokolle ja kihi 3 OSPFv2 dünaamilist marsruutimist ja staatilist marsruutimist ning pakub 8 10/100/1000BASE-T porti, mis on varustatud 95-vatise 802.3bt PoE++, 2 täiendavat Gigabit-vaskporti ja veel 2 täiendavat 1/2,5/10 Gigabit BASE-X SFP+ kiudoptilist pesa. Iga kaheksast Gigabit-portist annab 95 vatti võimsust, nii et eri tüüpi PoE-rakenduste jaoks on koguvõimsus kuni 240 vatti. See pakub kiiret, turvalist ja kuluefektiivset Power over Ethernet-võrgulahendust IP-turvalisuse jälgimiseks väikeettevõtetele ja ettevõtetele.
Hardware Specifications
Copper Ports10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X interface with Port-1 to Port-10
SFP/mini-GBIC Slots2 x 1G/2.5G/10G BASE-X SFP interfaces with Port-11 to Port-12
PoE Injector Port8 ports with 802.3bt/at/af PoE injector function with Port-1 to Port-8
Console1 x RJ45 serial port (115200 , 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Power Requirements100~240V AC, 50/60Hz
Power Consumption (Full Loading)284 watts/969BTU (max.)
ESD Protection6KV DC
Dimensions (W x D x H)330 x 200 x 43.5 mm, 1U height
Weight2.1kg
LEDSystem:
Ring (Green), R.O (Green), SYS (Green), PWR ((Green)
10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 10):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Orange)
802.3bt PoE-in-Use (Green) (Port 1 to Port 8)
802.3at/af PoE-in-Use (Orange) (Port 1 to Port 8)
1G/2.5G/10G Mbps SFP Interfaces (Port 11 to Port 12):
1G/2.5G LNK/ACT (Green)
10G Mbps (Orange)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric60Gbps/non-blocking
Throughput44.642Mpps@ 64Bytes packet
Address Table16K entries, automatic source address learning and aging
Shared Data Buffer16Mbits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame9KB
Power over Ethernet
PoE Standard802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Type802.3bt
UPoE
End-span
Mid-span
Force
PoE Power OutputPer port 52V DC
802.3bt mode, Port-1 to Port-8: maximum 90 watts
UPoE mode, Port-1 to Port-8: maximum 95 watts
Force mode, Port-1 to Port-8: maximum 60 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Power Pin Assignment802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budget240 watts (max.) @ 25 degrees C
200 watts (max.) @ 50 degrees C
Number of 90W 802.3bt Type-4 PDs2
Number of 60W 802.3bt Type-3 PDs4
Number of 802.3at PDs8
PoE Functions
PoE System ManagementSystem PoE Admin control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port ManagementPort Enable/Disable/Schedule
PoE mode control
802.3bt
UPoE
802.3at End-span
802.3at Mid-span
Force mode
Port Priority
PoE Extend ModePer PoE port, max. 160 to 250 meters
PoE Device Live DetectionPer port remote PD IP address
4 actions
None
PD reboot
PR reboot and alarm
Alarm
PoE Power RecycleYes, daily or predeinded schedule
PoE Schedule4 schedule profiles
Layer2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
VLAN802.1Q tagged based VLAN, up to 4K VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP/Static Trunk
Supports 6 trunk groups with 4 ports per trunk
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 256 entries
Bandwidth ControlPer port bandwidth control
Ingress: 10Kbps~13000Mbps
Egress: 10Kbps~13000Mbps
Layer 3 Functions
IP InterfacesMax. 128 VLAN interfaces
Routing TableMax. 128 routing entries
Routing ProtocolsIPv4 OSPFv2 dynamic routing
IPv4 hardware static routing
IPv6 hardware static routing
Management
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
Management FunctionsFirmware upgrade by HTTP/TFTP protocol through Ethernet network
Remote syslog and local system log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
ONVIFONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBsRFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 3621 Power Ethernet MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
Environments
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
