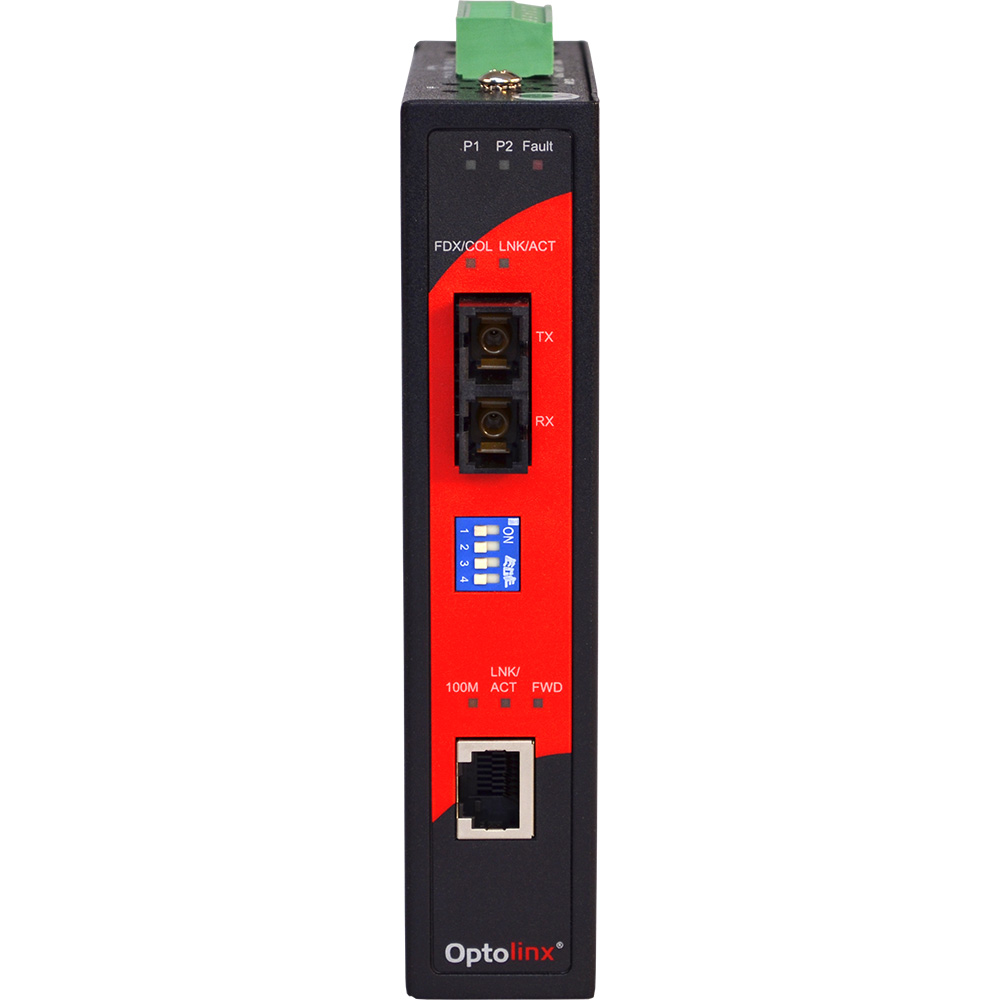

10/100TX To 100FX Industrial PoE Media Converter, SM 30KM SC

Approvals EMI: FCC Class A
CE EN6100-4-2/3/4/5/6/8/11
CE EN6100-6-2/4
Safety: UL, cUL, CE-EN60950
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Connector SC (Single-Mode)
Dimensions IP-30, 30 x 95 x 140 mm (1.18 x 3.74 x 5.51 inches)
Dip Switch 1. ON: Enables Port Alarm
OFF: Disables Port Alarm
2. ON: Enables Link Loss Forward & Link Fault Pass Through
OFF: Disables Link Loss Forward & Link Fault Pass Through
3. ON: 100BaseFX Half-Mode
OFF: 100BaseFX Full-Mode
4. ON: Media Mode (100TX to 100FX)
OFF: Switching Mode
Ethernet 10/100BaseT: 1 x RJ45 Connector
Fiber Core Single-mode (30Km) - 9/125um ~ 10/125um
Humidity 5% ~ 90% non-condensing
IEEE IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX
IEEE 802.3x Flow Control and Back-Pressure
IEEE 802.3af Power over Ethernet
LED Unit: Power(Green), Power1(Green), Power2(Green), Fault (Red)
Fiber: Link/Act(Green), Full-Duplex/Collision(Yellow)
Ethernet: Link/Act(Green), 100M(Yellow), Feeding Power (Green)
Link Loss Forward (TX-Fiber) If TX port link down, will force Fiber port to link down
(Fiber-TX) If Fiber port link down, will force TX port to link down
Operating Temperature -10° ~ 70° C (14° ~ 158° F)
Overload Current Protection Present
Poe Pin Assignment RJ-45 Port Supports IEEE 802.3af End-Point, Alt. A Mode
Positive (VCC+): RJ-45 Pin 1, 2
Negative (VCC-): RJ-45 Pin 3, 6
Data (1, 2, 3, 6)
Power DC 48V Redundant Power
Power Consumption 3.3W (w/o PoE)
16.4W (Full Load w/ PoE)
Reverse Polarity Power Protection Present
Storage Temperature -40° ~ 85° C
Switching Architecture Store and Forward
Transfer Rate 14,880pps for Ethernet Port
148,800 for Fast Ethernet Port
Typical Distance 30 Km
Warranty 5 Years
Wave length 1310 nm
200.00 € 200.00 € (Tax excluded)

  • Weight
Add to cart
Add to wishlist
Terms and Conditions
Prices exclude VAT.
Documents
datasheet.pdf

Manufacturer Part Number: IMP-100A-S3
Internal Reference: EE-100-169-809

Specifications

Weight 0.43 kg
