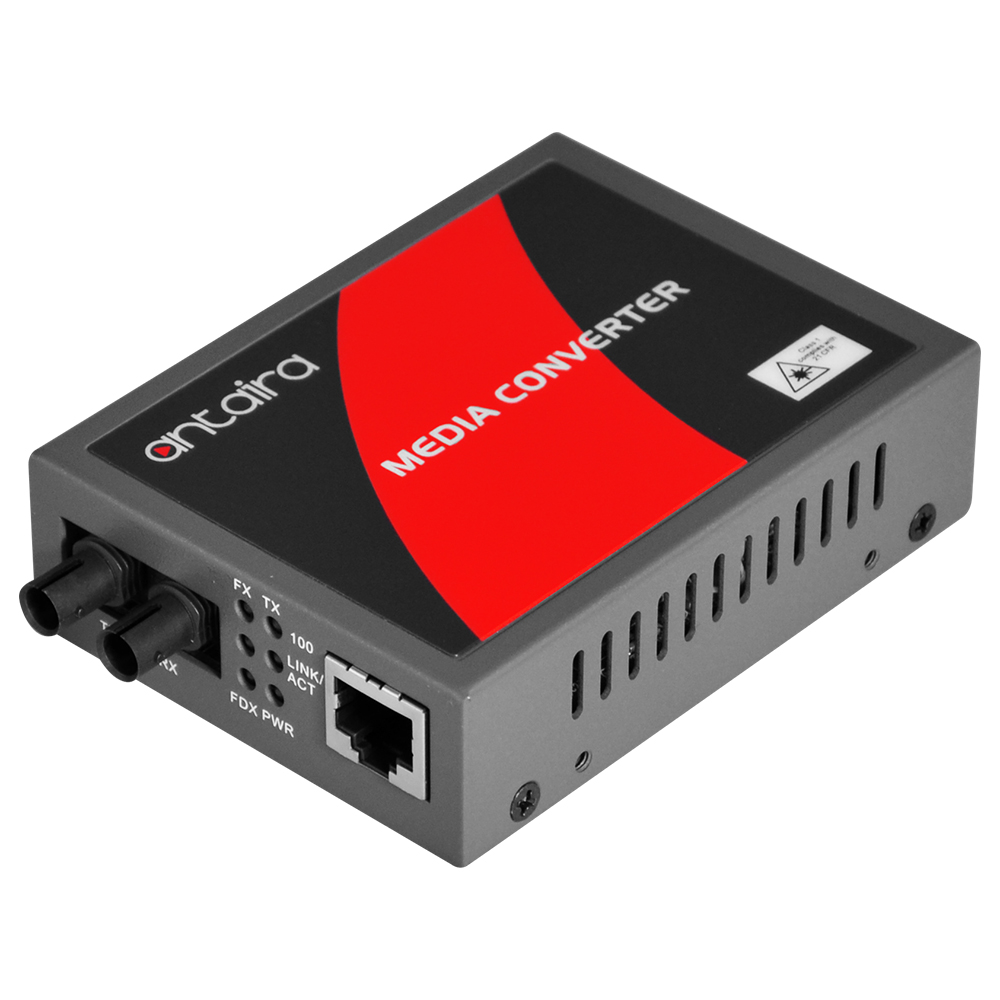

10/100TX To 100FX Media Converter, Multi-Mode 2KM, ST Connector

10/100TX To 100FX Media Converter, Multi-Mode 2KM, ST Connector

Approvals	FCC Class A, CE
Connector	ST (Multi-Mode)
Dimensions	71 x 97 x 26 mm(2.80 x 3.82 x 1.02 inches)
Ethernet	10/100BaseT: 1 x RJ45 Connector
Fiber	100BaseFX: 1 x ST Duplex Connector
Humidity	5% ~ 90% non-condensing
IEEE	IEEE 802.3 10BaseT, 802.3u 100BaseTX/FX
Link Budget	11.0 dB
Mac Address Table	1 K
Max Tx Power	-14.0 dBm
Method	Store and Forward
Min Tx Power	-19.0 dBm
Operating Temperature	0° ~ 50° C
Power	DC 5V, 1.6A
Power Consumption	5 W
Rate 1000M	148,800pps
Rate 10M	14,880pps
Sensitivity	-30.0 dBm
Storage Temperature	-20° ~ 60° C
Transfer Rate	200 Mbps - Full Duplex
Typical Distance	2 Km
Warranty	5 Years
Wave length	1310 nm
Weight	0.6 Kg

154.00 € (Tax excluded)

Add to cart

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

datasheet.pdf

Manufacturer Part Number: FCU-100ST
Internal Reference: EE-100-169-741

Specifications

Weight

0.59 kg
