Hardware compatibility: All computers with USB interfaces
Software compatibility: Operates with all known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

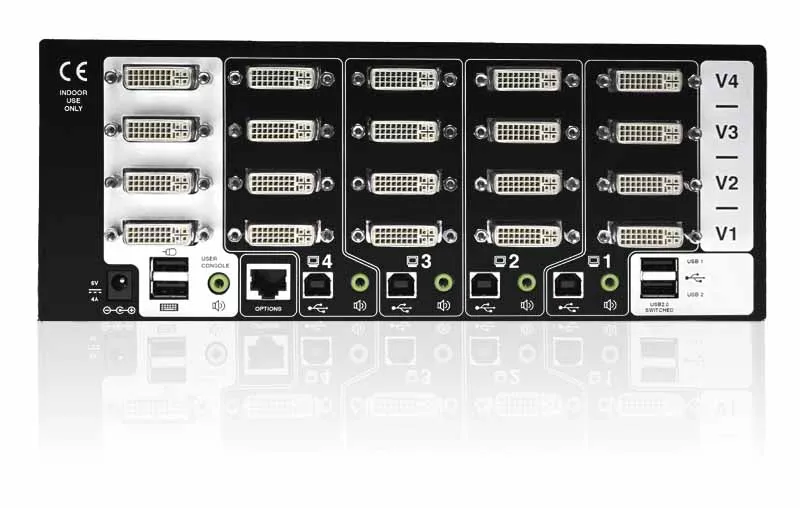

Computer connections at switch: USB2.0 type B, Dual-link DVI-I (up to 4 per connection), 3.5mm stereo jack
Local KVM console connection:
Video: Dual-link DVI-I (Dual x 2, Triple x 3 or Quad x 4)
Resolution: All resolutions up to 5MP per head (eg 2560x1920 4.92M3-R).
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB2.0 type A
Switched USB: Supports USB 2.0 devices in low, full and high speed modes.
USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C
Physical design: 2.5U high metal case 26mm (w), 15mm (d), 10mm (h)
Power: 2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter
Operating temperature: 0ºC to 40ºC
Approvals: CE, FCC
