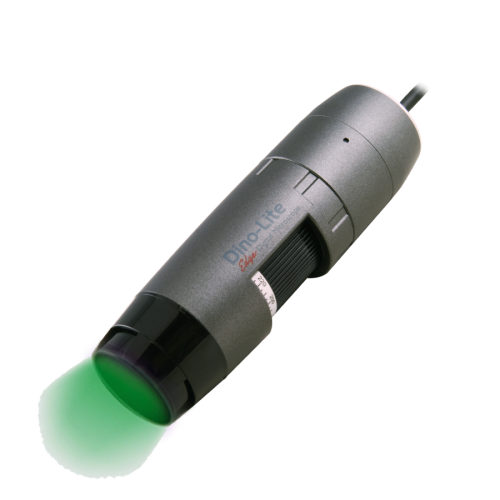

Dino-Lite AM4115T-YFGW digitaalmikroskoop on optimeeritud uurimiseks ja fluorestseeruvate objektide vaatlemiseks, kasutades 525 nm LED-sid. Sellel on 570 nm emissioonifilter, mis on loodud vaatlema muu hulgas Cy3 ja TRITC-d.
Võrreldes traditsioonilise fluorestsentsmikroskoobi ribalaiusega emissioonifiltriga pakub Dino-Lite'i pika lainepikkusega emissioonifilter nähtavust ja tundlikkust laiemas fluorestsentslainepikkuse vahemikus. AM4115T-YFGW-l on võimalus vahetada valgusallikat 525 nm rohelisest erutus-LED-idest valgele LED-ile, mis on mugav objekti leidmiseks ja hõlpsa fookuse saamiseks.
Lighting
Light/ LED type525nm excitation + white
Number of LEDs7 FL + 1 White
LED on/off switchable:Yes
Infrared filterNo
Diffuser availableNo
Emission filter570nm, LP
PolarizerNo
FluorophoresCy3, TRITC
Optics
Magnification20-220x
Macro zoomNo
Working distanceStandard
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution1.3 Megapixel (1280x1024)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7, 8, 10 & 11, MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows)BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows)WMV, FLV, SWF
Supported image formats (MacOS)JPEG, PNG
Supported video formats (MacOS)MOV
Imaging standardsDirectShow, UVC
WifiWireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
Housing materialComposite/ plastic housing
Magnification lockYes
Dimensions10.5cm (L) x 3.2cm (D)
Weight100g
Cable length1.8m
Features
Special featureNo
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeNo
Information
Package contentsMicroscope, carry pouch, calibration target, user manual
Warranty information2 years European warranty
Regulatory approvalCE, FCC, ROHS
