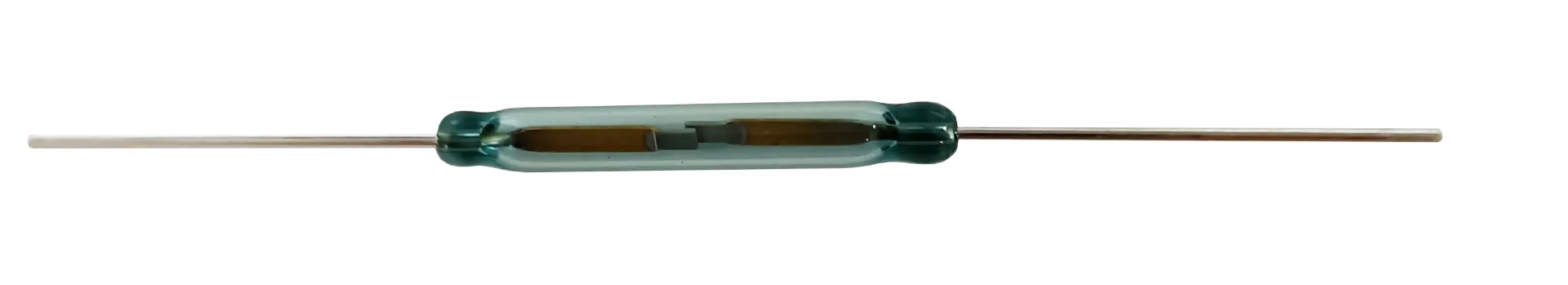

REED SWITCHES FOR. A-20MM-40W/200VDC/1A

REED SWITCHES FOR. A-20MM-40W/200VDC/1A

AI443040 on usaldusväärne reedrelee lüliti ühe normaalselt avatud kontaktiga (1 NO), mis on mõeldud alalisvoolude usaldusväärseks lülitamiseks kuni 1A voolul ja maksimaalsel pingel 200VDC. See mitmekülgne lüliti on varustatud vaid 20,5 mm pikkuse klaaskestaga, kuid suurema lülitusvõimsusega (30VA/W).
Technical Specifications:
Product Type: Reed Switch (1 Form A, 1A/200VDC)
Max Switching Power: 30VA/W
Contact Type: 1 Form A (Normally Open)
Max Switching Voltage: 200VDC
Max Switching Current (A): 1.0
Glass Length: 20.5 mm
Sensitivity Range: 30-40 ATf
4.81 € 4.81 € (Tax excluded)

  • Relay contact type
  • Relay glass length mm
  • Relay max switching current a
  • Relay max switching power
  • Relay max switching voltage
  • Relay sensitivity range atf
  • Weight
Add to cart
Add to wishlist
Terms and Conditions
Prices exclude VAT.
Documents
FT_AI44.pdf

Manufacturer Part Number: AI443040
Internal Reference: EE-100-169-349

Specifications

Relay contact type 1no (Relay contact type)
Relay glass length mm 20 5
Relay max switching current a 2
Relay max switching power 30va (Relay max switching power)
Relay max switching voltage 200vdc (Relay max switching voltage)
Relay sensitivity range atf 30 40
Weight 0.03 kg
