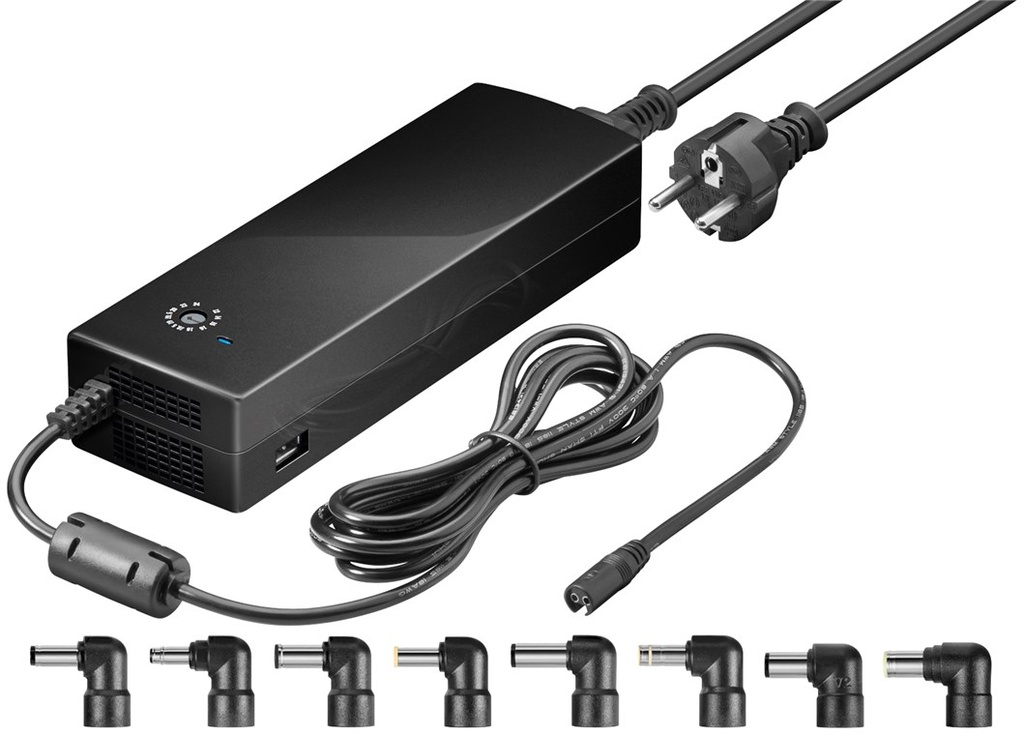

134,5 W notebook power supply incl. 1 USB and 8 DC adapter; 12 V - 24 V with max. 8.5 A

Performance

Power consumption 134.5 W
Security Functions Short circuit, Overloading, Overcurrent
No-load power consumption 0.24 W

Device connections

Power frequency 60 Hz
Input current 1.7 A
Average active efficiency 87.1 %
Efficiency at low load (10 %) 85.5 %
Output, Voltage Step 12, 14, 15, 16, 18, 18,5, 19, 19,5, 20, 22, 24 V
Input, type Safety plug (type F, CEE 7/7)
voltage stabilization yes
Output, type DC female (universal, 2-Pin)
Input, Voltage Range 100 - 240 (AC) V
Output, max. amperage 8.5 A
Output, min. amperage 5.5 A

General

Packaging type Retail Box
Consumption Unit 1 pc. cardboard box
Cable length 1.5 m
Color black
Markings WEEE, Haus, Quader, CE
Length 199.3 mm
Width 67.2 mm
Height 41.5 mm
Weight 857 g

Scope of delivery

Notebook adapter
power supply 100-240 V (British 3-Pin), DC adapter (4,75 x 1,70 mm), DC adapter (5,00 x 1,00 mm), DC adapter (5,50 x 1,70 mm), DC adapter (5,50 x 2,50 mm), DC adapter (6,30 x 3,00 mm), DC adapter (6,50 x 1,40 mm), DC adapter (7,40 x 0,60 mm), DC adapter (7,90 x 0,90 mm), USB 2.0, manual
accessory - Power supply
Efficiency at low load (10 %) 85.5 %
Cable Length 1500 mm
Weight 857 g

98.55 € (Tax excluded)

Add to cart

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

UPL_WEN55004_Data-Sheet.pdf UPL_WEN55004_Manual_web.pdf

Manufacturer Part Number: 55004
Internal Reference: EE-100-195-311

Specifications

Weight

0.7 kg
