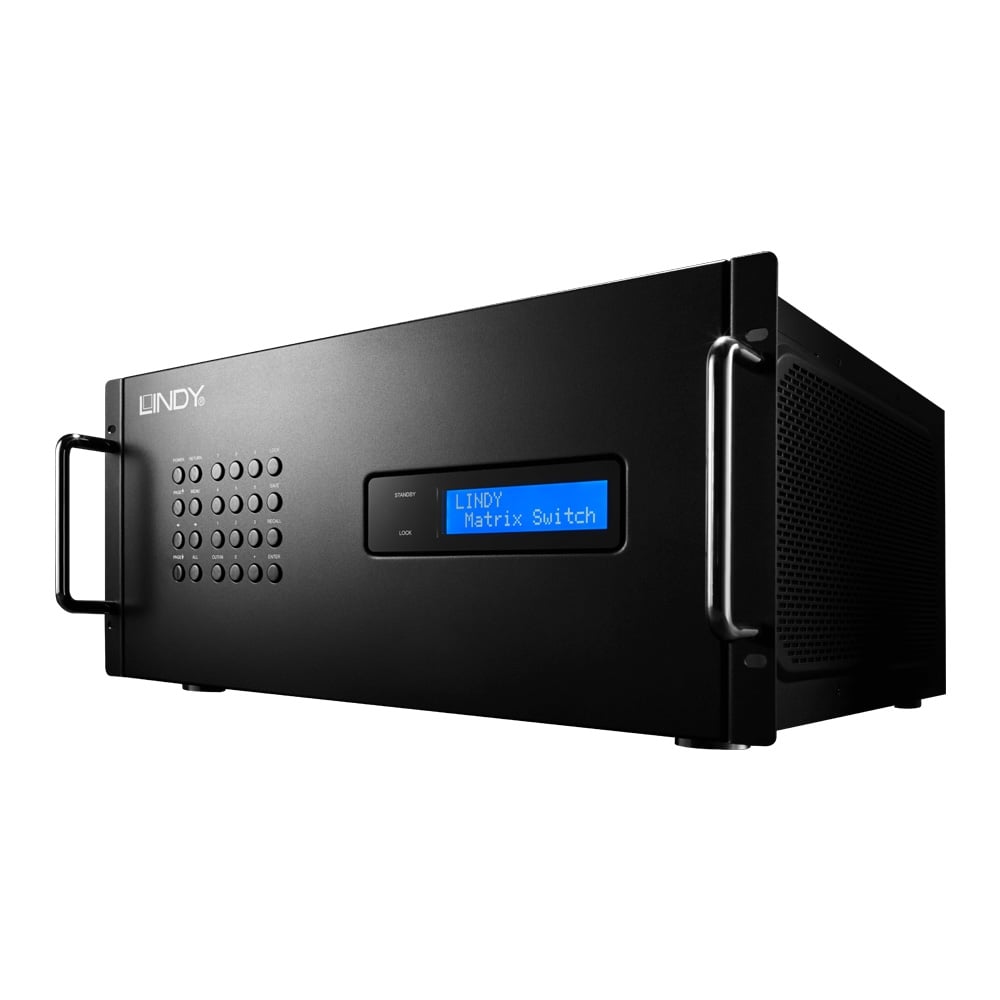

32x32 Modular Matrix Switch Chassis

32x32 Modular Matrix Switch Chassis

Connectors

Input: 1 x 9 Pin DSub (RS232), RJ45 (IP Control), USB service port, 2 x 3.5mm IR sockets
Output: 1 x 3.5mm IR
Power: 2 x In-built PSU with IEC C14 (supports redundancy)

Housing

Material: Metal
LCD display: Yes
Colour: Black
Power requirements: 750w (max)
Dimensions: 482 x 494 x 233mm (WxDxH)

Technical Information

Supported bandwidth: 340MHz / 10.2Gbps
Maximum resolution: 4096 x 2160p 60Hz 8 bit 4:2:0 including 1080p 3D
Maximum colour depth: 36 bit (12 bit per channel)
Supported audio: 7.1 channel of LPCM, Dolby TrueHD and DTS-HD Master Audio digital audio signals
Lipsync: Passthrough
Infrared support: Yes
Remote control: Yes
Weight: 28.16kg
Chipset: Yes
Rackmountable (5U Height)
PSU included: Dual redundant hot-swapable power supplies
Working power consumption: 150w
Idle power consumption: 70w
Operating temperature: 0°C - 40°C
Storage temperature: -20°C - 60°C
Country of origin: Taiwan

Compliance

HDMI: 1.4
HDCP: 1.4
DVI: 1.0
CE: Compliant
FCC: Compliant
RoHS 2.0: Compliant

7,811.63 € (Tax excluded)

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

1458059594Modular_MatrixV2.pdf

Manufacturer Part Number: 38250
Internal Reference: EE-100-179-813

Specifications

Weight

22 kg
