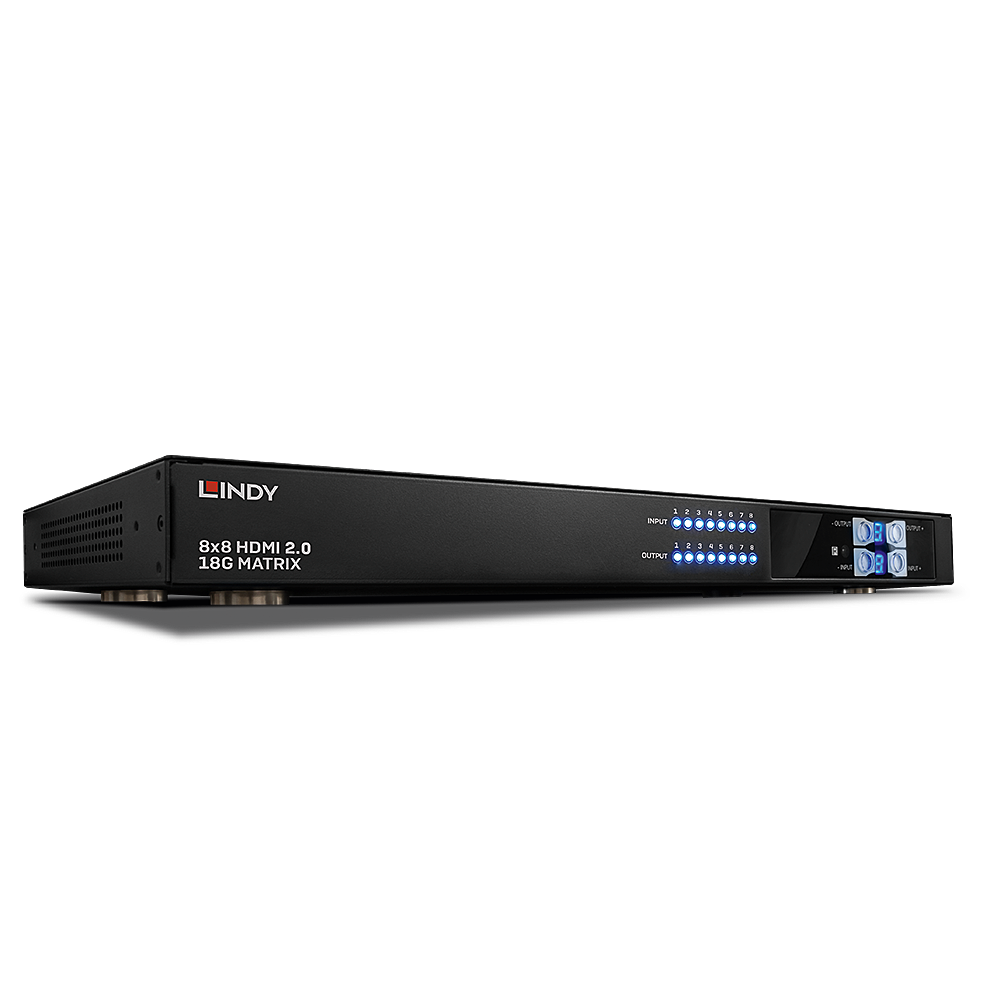

8x8 HDMI 2.0 18G Matrix Switch

8x8 HDMI 2.0 18G Matrix Switch

Specifications

AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Supported Audio: Audio Pass Through
IR Support: 38kHz

CEC Support: -

Serial Interface: RS232
LED/LCD Display: LED
Control: IR, RS232, Telnet, App
Special Features: EDID Management

Connectors

Input: 8 x HDMI (Female), USB Type A (Female)
Output: 8 x HDMI Type A (Female)
Control: RS232 (Female), RJ45 (Female), 3.5mm (Female)
Power: 4 pin din

Physical Properties

Dimensions WxHxD: 440x22x44mm (17.32x0.87x1.73in)
Housing Material: Metal
Nett Weight: 2.68kg (5.91lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 12VDC 7.5A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 543x335x344mm (21.38x13.19x13.54in)
Gross Weight: 3.954kg (8.72lb)
Warranty (Years): 2
Certificated: CE, FCC, REACH and RoHS

Package Contents

HDMI Matrix
IR remote control
IR Extension Cable
Rack Mounting Kit
IEC C13 Power Cable
Power Supply
Lindy Manual

Purchasing Information

No. 38160
EAN: 4002888381604

1,931.34 € (Tax excluded)

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Manufacturer Part Number: 38160
Internal Reference: EE-100-179-776

Specifications

Weight

0.69 kg
