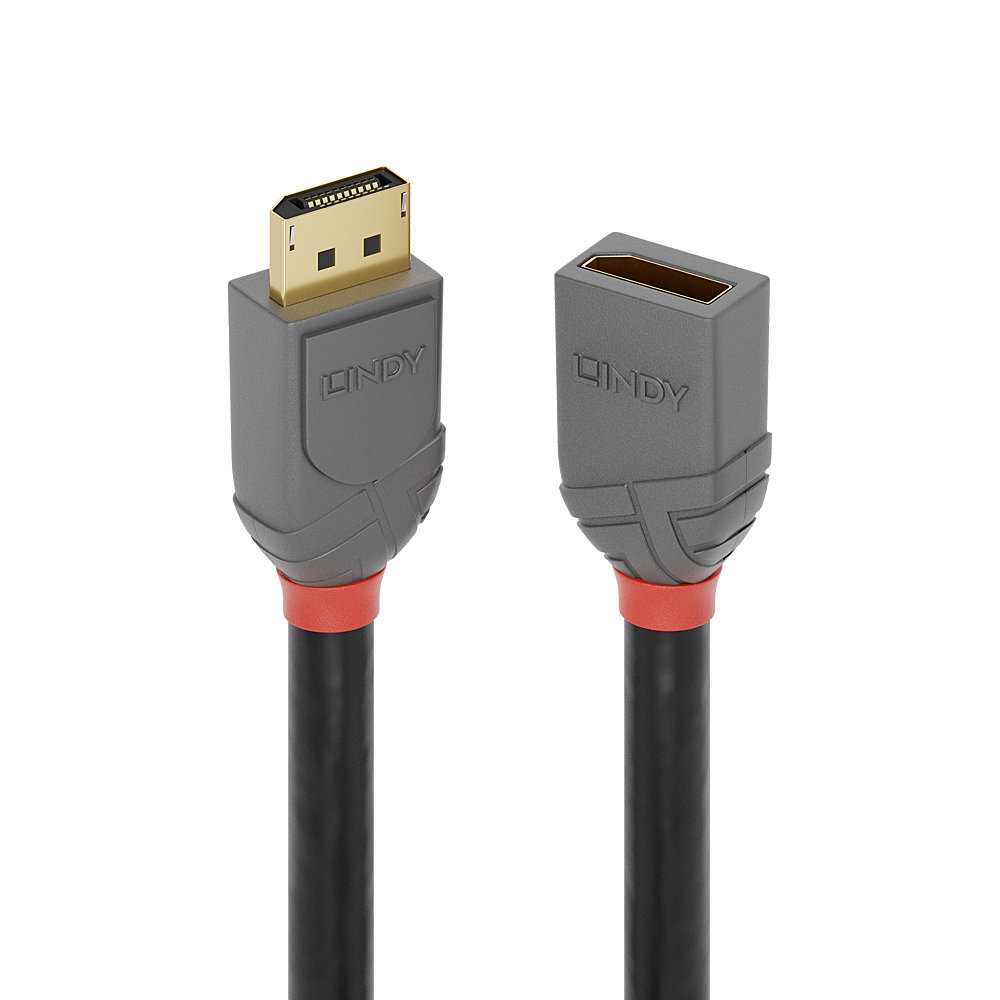

Connectors:
Connector A: DP Male
Connector B: DP Female
Housing Material: ABS (Male) / PVC (Female)
Connector Plating: Gold
Pin Construction: Copper Alloy
Pin Plating: Gold
Dimensions (approx.) WxDxH: M: 20.5x36.0x12.5mm (0.8x1.42x0.49in)
F: 20.9x35.0x11,8mm (0.82x1.38x0.46in)
Cable construction:
Length: 3m (9.841ft)
Standard: DP 1.4
Colour: Black
Type: Round
Jacket Diameter: 7.0mm (0.28n)
Jacket Material: PVC
Conductor Material: Copper Alloy
Conductor Gauge: 28AWG
Shielding: Aluminium Magnesium Braid 85%
Specifications:
Supported Bandwidth: 32.4Gbps
Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit
Nominal Attenuation:
1.35GHz > -5.5dB (HBR1)
2.7GHz > -8.5dB (HBR2)
4.05GHz > -11.0dB (HBR3)
Minimum Bend Radius: 70mm (2.76in)
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -20°C - 85°C (-4°F - 185°F)
Miscellaneous:
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, CP65, UL
Purchasing information:
No.: 36498
EAN: 4002888364980
This product is also available in other lengths:
36495 - 0.5m (1.64ft)
36496 - 1m (3.281ft))
36497 - 2m (6.561ft)
36498 - 3m (9.841ft)
