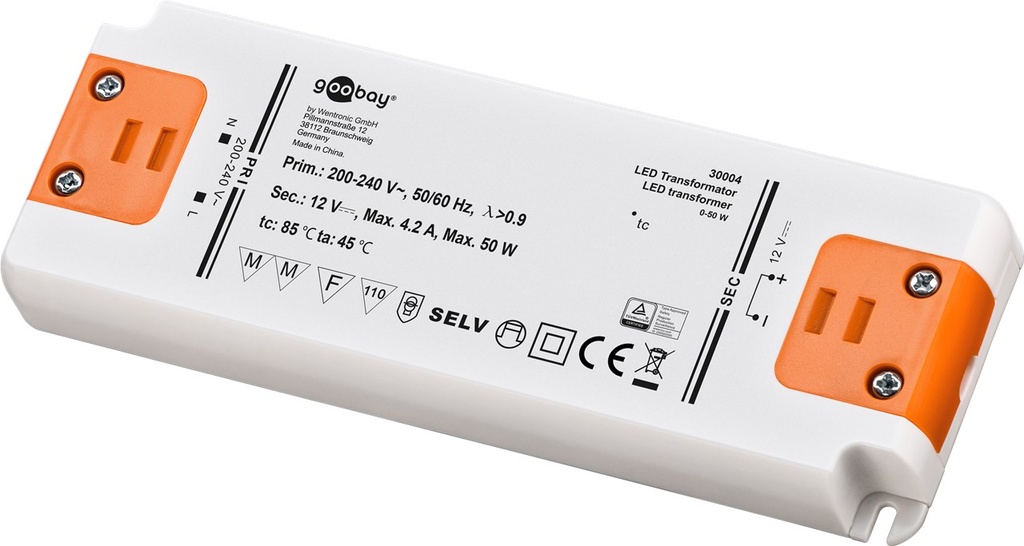

LED Transformer 12 V (DC)/50 W

LED Transformer 12 V (DC)/50 W

Performance

max. performance 50 W
minimum load 0
Dimmability not dimmable
No-load power consumption 0.5 W

Device connections

Input, type Screw clamp
number of inputs 2 pcs.
Input Cross Section 0.75 mm²
Output, type Screw clamp
Output, voltage (DC) 12 V (DC)
Output, max. amperage 4.2 A
Output Cross Section 0.75 mm²
Output, max. amperage 4170 mA
Input, Voltage Range 200 - 240 (AC) V
Number of outputs 2 ports

General

Packaging type Retail Box
Consumption Unit 1 pc. in cardboard box
protection class IP20
Appliance Class II
Color orange, white
Markings WEEE, CE, bauartgeprüft: TÜV Rheinland
Operating temperature from -20 °C
Operating temperature up to 45 °C
Length 159 mm
Width 59 mm
Height 18 mm
Weight 180 g

37.82 € (Tax excluded)

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

UPL_WEN30004_Manual.pdf

Manufacturer Part Number: 30004
Internal Reference: EE-100-194-780

Specifications

Weight

0.174 kg
