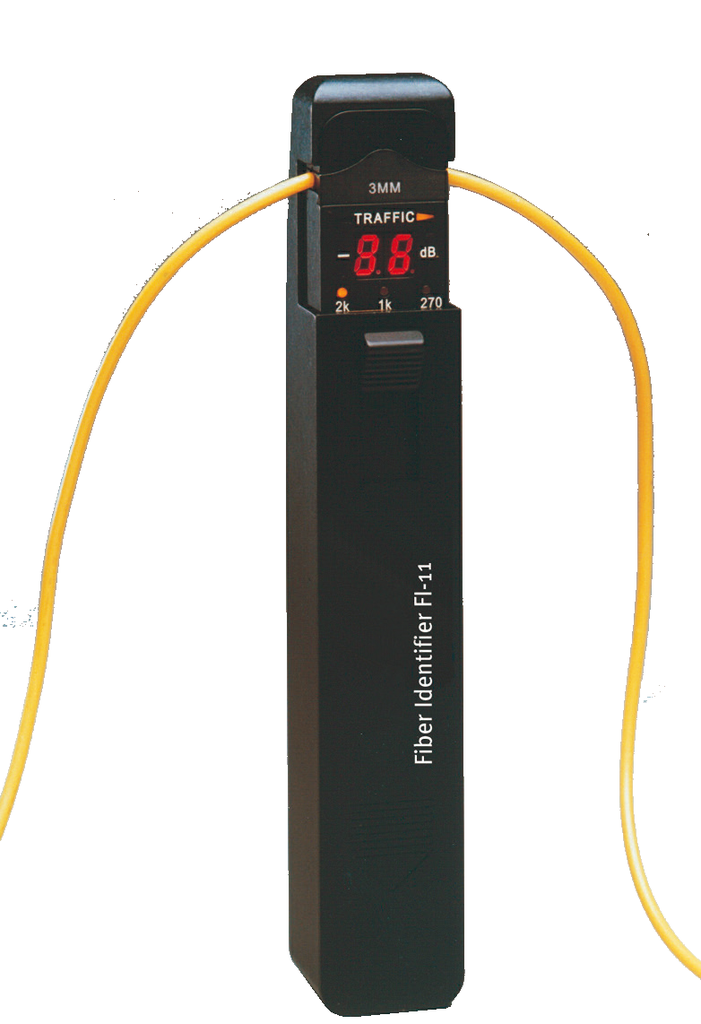

Fiber Identifier FI-11

Fiber Identifier FI-11

Fiiber signaali identifitsezerija FI-1 Kontrollitb kas signaal on või mitte

Key Benefits

Easidentification of a specific fiber without disrupting the service for your customers
Non-destructive macro-band detection prevent damage or overstress of the fiber
Onlone unit for single-mode and multimode application
No need to open the fiber at the splice point for identification; eliminating the probability of interrupting service

Key Features

Handheld, lightweight, rugged, battery-powered
Interchangeable adapter heads for: jacketed, coated or ribbon fiber
Attaches to belt or tool pouch
Relative zero power reading
Operates with one hand
Live fiber identifier
Operates from 850 nm to 1700 nm
Compatible with most AT&T and Corning optical fiber
Easy-to-use
Core power measurement
Bidirectional traffic indication
High-intensity LED indication of active signal transmission
Detects presence of 270 Hz, 1000 Hz, and 2000 Hz modulated tones

3,480.75 € (Tax excluded)

Add to wishlist

Terms and Conditions
Prices exclude VAT.

Documents

fi-11-fiber-identifier-data-sheet-en.pdf

Manufacturer Part Number: 2255/90.06
Internal Reference: EE-100-178-787
