Gigabit Ultra PoE+ Injector

TRENDnet’s Gigabit Ultra PoE+ Injector, model TPE-117GI, combines electrical power with a Gigabit network connection to produce a Gigabit Ultra Power over Ethernet Plus signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your Ultra PoE devices and PoE+ devices. Use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.

PoE Supplies a PoE device with PoE (15.4 watts), PoE+ (30 watts), or Ultra PoE (60 watts) power	Installation Flexibility  Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios	Gigabit Speeds  Experience Full Duplex 2 Gbps Ethernet speeds with this Ultra PoE injector

	PoE  Supplies a PoE device with PoE (15.4 watts), PoE+ (30 watts), or Ultra PoE (60 watts) power
	Plug and Play  Plug and play PoE network devices – no configuration needed
	Installation Flexibility  Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios
	Gigabit Ports  1 x Gigabit Ethernet port and 1 x Ultra PoE Gigabit Ethernet port with full duplex 2 Gbps Ethernet speeds
	PoE Distance  Provides an Ultra PoE network connection up to 100 meters (328 ft.)
	LED Indicators  LED indicators confirm PoE and network connectivity
	Auto-Sensing Technology  Auto-sensing technology delivers up to 60 watts to an Ultra PoE device with backwards compatibility for 802.3at PoE+ (30 watts) and 802.3af PoE (15 watts) devices.

• Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt compatible

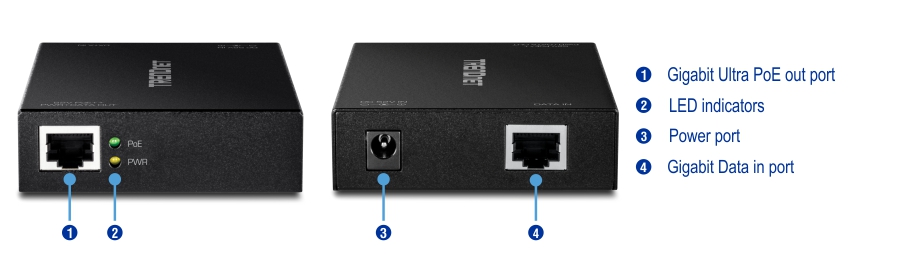

• Device Interface
• 1 x Gigabit Data in port
• 1 x Gigabit Ultra PoE out port
• Metal Housing
• Power
• Input: 100-240 V, 2 A 50-60 Hz
• Output: 52 V, 1.38 A
• PoE Budget
• 60 watts max.
• Power Consumption
• 5 watts max. (without PD)
• Temperature
• 0 - 60 °C (32 - 140 °F)
• Humidity
• Max. 95% non-condensing
• Certifications
• CE
• FCC
• Dimensions
• 120 x 75 x 22 mm (4 x 3 x 0.8 in.)
• Weight
• 185 g (6.5 oz.)
• Warranty
• 3 year limited

Package Contents
